Home/Shop/Pioneer Diamante Pro Low-Ambient 1-Zone 12,000...
Pioneer Diamante Pro Low-Ambient 1-Zone 12,000 BTU 20 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V SA691 - WT012GLSI20HLF - New in Box
New in Box In Stock
Pioneer

Pioneer Diamante Pro Low-Ambient 1-Zone 12,000 BTU 20 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V SA691 - WT012GLSI20HLF - New in Box

4.8· Neu Shield 1-yr warranty
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow
  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
$772.00$1,229.00 You save $457.00 (37% off)
As low as $64/mo · financing available

ID SA691

Condition New in Box

Model Number WT012GLSI20HLF

Warranty 1-year Neu Shield Warranty

NeuShield Warranty
Neu Shield
1-yr warranty
Local Delivery
Available
Inspected by
Appliance Nerds
Product Description

Pioneer Diamante Pro Low-Ambient 1-Zone 12,000 BTU 20 SEER2 Ductless Mini Split Inverter Heat Pump with 16 ft. Lines 208V/230V

New (New In Box)

This appliance is Brand new. There are no cosmetic blemishes etc. The appliance has the full manufacturer warranty.

Model Number - WT012GLSI20HLF / YN012GLSI20RPF

Discover the ideal blend of performance, precision, and control with the WYT-20 Diamante Pro Series from Pioneer. Engineered with a powerful DC inverter compressor and charged with eco friendly R-454B refrigerant, this ductless mini split system achieves efficiency up to 20 SEER2 to help reduce energy use while maintaining comfort year round. The system operates in temperatures as low as -4 F in heating mode and provides reliable cooling during hot weather. Featuring dual directional airflow, the Diamante Pro distributes air evenly throughout the room for improved comfort. A modern flat panel design with LED display offers both style and functionality, and optional wireless internet control through the Pioneer AirLink app module sold separately allows convenient climate control.

  • Cooling capacity of 12,000 BTU/hour with 20 SEER2 and 11.2 EER2 efficiency

  • Heating capacity of 12,000 BTU/H with 9.5 HSPF2 and 3.41 COP2 efficiency

  • Voltage: 208V - 230V, 60Hz, 1Ph

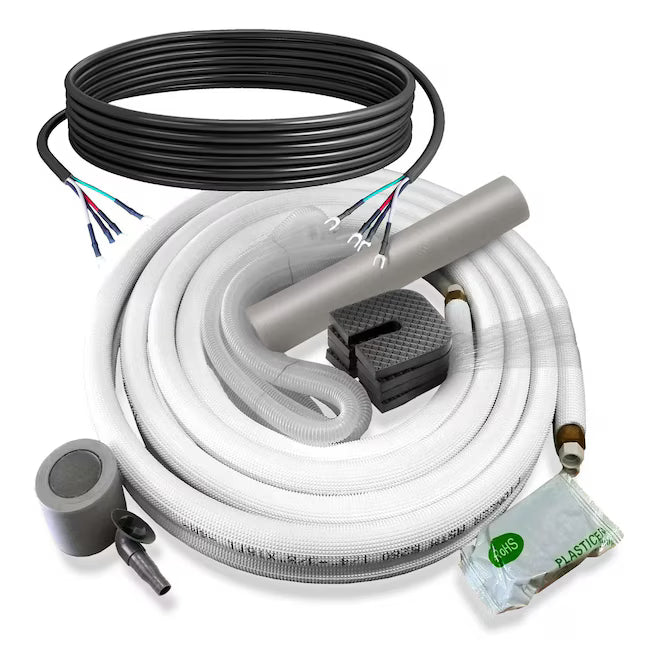

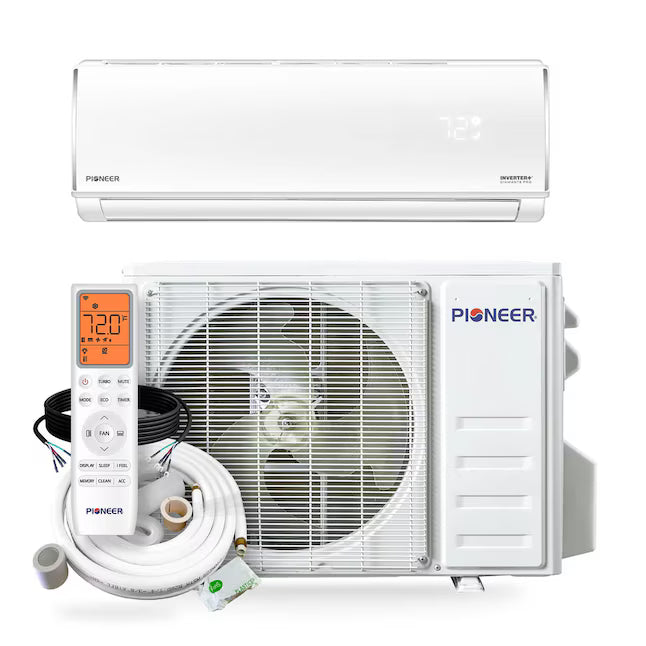

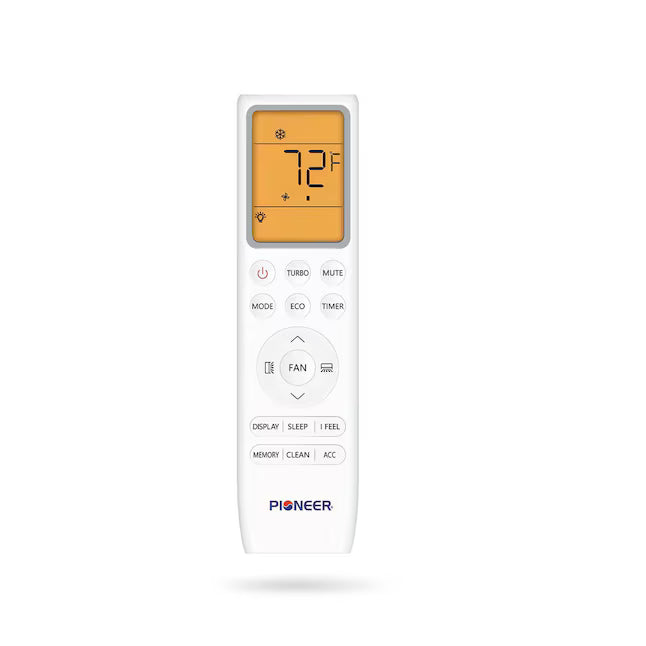

  • Includes indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft line set with installation accessories and vibration absorber feet for condenser.

  • Unsurpassed support hotline covers installation, use, troubleshooting, warranty and parts issues

  • Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption

  • Certified by ETL, AHRI, DOE for safety, performance and efficiency

  • Diamante Pro series carries a full line of low-ambient wall-mounted mini splits with capacities ranging from 9,000 BTU/hour to 36,000 BTU/hour for various residential and light commercial applications

  • R454B pre-charged outdoor unit accommodating line lengths up to 25 ft

Specifications

General
Color/Finish Family
White

Control Type
Electronic

Manufacturer Color/Finish
White

Filter Type
Mesh

Series Name
Diamante Pro

Mounting Location
Wall

Sub-Brand
Diamante WYT-20

Refrigerant Type
R-454B

Type
Flare line set

Number of Tons
1

Application
Heating/Cooling

Dimensions
Air Handler Depth (Inches)
8

Height (Inches)
40

Air Handler Height (Inches)
11.5

Line-set Connection Size
1/4-in x 3/8-in

Air Handler Width (Inches)
31.88

Line-set Length
16-ft

Compressor Depth (Inches)
11.5

Maximum Coverage Area (Sq. Feet)
500

Compressor Height (Inches)
19.38

Weight (lbs.)
160

Compressor Width (Inches)
31

Width (Inches)
40

Cord Length (Feet)
16

Zone Capacity
1 zone

Depth (Inches)
20

Amperage
4.8

Features
24 Hour Timer
Yes

Minimum Outdoor Temperature (Fahrenheit)
4

Auto Cool
Yes

Multi-Directional Air Control
Yes

Automatic Shut-Off
Yes

Noise Rating
Quiet (45 decibels or below)

Cooling BTU Rating (BTU)
12000

Number of Speeds
5

Decibel Rating (Highest Setting)
55

Oscillation
Yes

Decibel Rating (Lowest Setting)
28

Overload Protection
Yes

Fan Only Option
Yes

Pre-Charged Line Set
Yes

Full Load Amperage Requirement (Amps)
4.8

Quiet Mode
Yes

Heat Pump Included
Yes

Remote Control Included
Yes

Heating BTU Rating (BTU)
12000

Sleep Mode
Yes

Hub Required
No

Thermostat
Yes

Kit
Yes

Timer
Yes

Low Voltage Compensation
No

Voice Controlled
No

Voltage (Volts)
230

Compatibility
Bluetooth Compatibility
No

Works with Apple HomeKit
No

Wi-Fi Compatibility
No

Works with iOS
No

Works with Amazon Alexa
No

Works with SmartThings
No

Works with Android
No

Works with the Google Assistant
No

Certifications
AHRI Certified
Yes

ENERGY STAR Certified
No

CA Residents: Prop 65 Warning(s)
Prop 65 WARNING(S) -
Safety Listing
ETL safety listing

Energy Efficiency Ratio (E.E.R.)
11.2

Seasonal Energy Efficiency Ratio (SEER2)
20

Miscellaneous
UNSPSC
40101700
