ACCESSORIES
Optional 12' Drain Hose Optional hose kit (WD24X10065)
APPEARANCE
Color Appearance Fingerprint Resistant Stainless
Control Panel Color Storm Gray
Door Appearance Full-length door
Door Style Long Door with Top Controls
Handle Pocket Handle
Handle Color Fingerprint Resistant Stainless
Installation Side or Top Mount Install Brackets Included
Built-Up Floor Capable Flush Cabinet Installation
ECONOMICAL / QUIET
Door Insulation Insulation Mastic
Motor Type Variable Speed
Outer Wrap Full-wrap Blanket Bitumen
Quiet Features Quiet Water Valve Sealed Toe Kick Tub Collar Trim
Quiet Package 45 dBA
FEATURES
Additional Protection Active Flood Protect

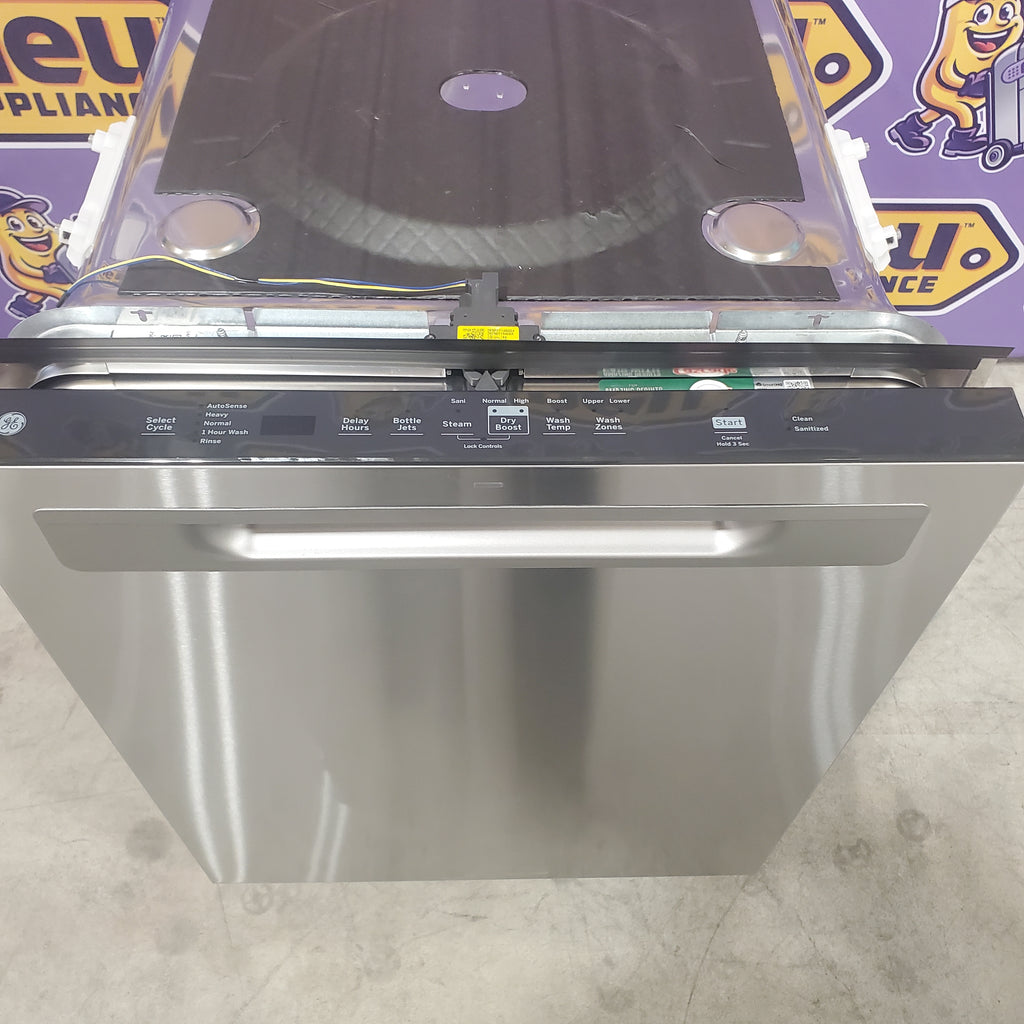

Control Type Top Controls 8 Touchpads Cap Touch Controls
Cutlery Tray One piece removable 3rd rack
Dishwasher Control Features 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators Last Cycle Memory Audible End-of-Cycle Signal Control Lock with 1 Light
Dishwasher Cycles AutoSense Heavy Wash Normal Wash 1 Hour Wash Rinse
Dishwasher Drying Features Normal, High, Off Dry Boost™
Dishwasher Options Delay Start 1-12 Hr. Child Lock Start/Cancel Bottle Jets Steam + Sani (Certified to NSF Standard 184) Dry Boost™ (High) Dry Boost™ (Normal) Wash Temp Boost Wash Zone Upper Only Wash Zone Lower Only Sabbath Mode

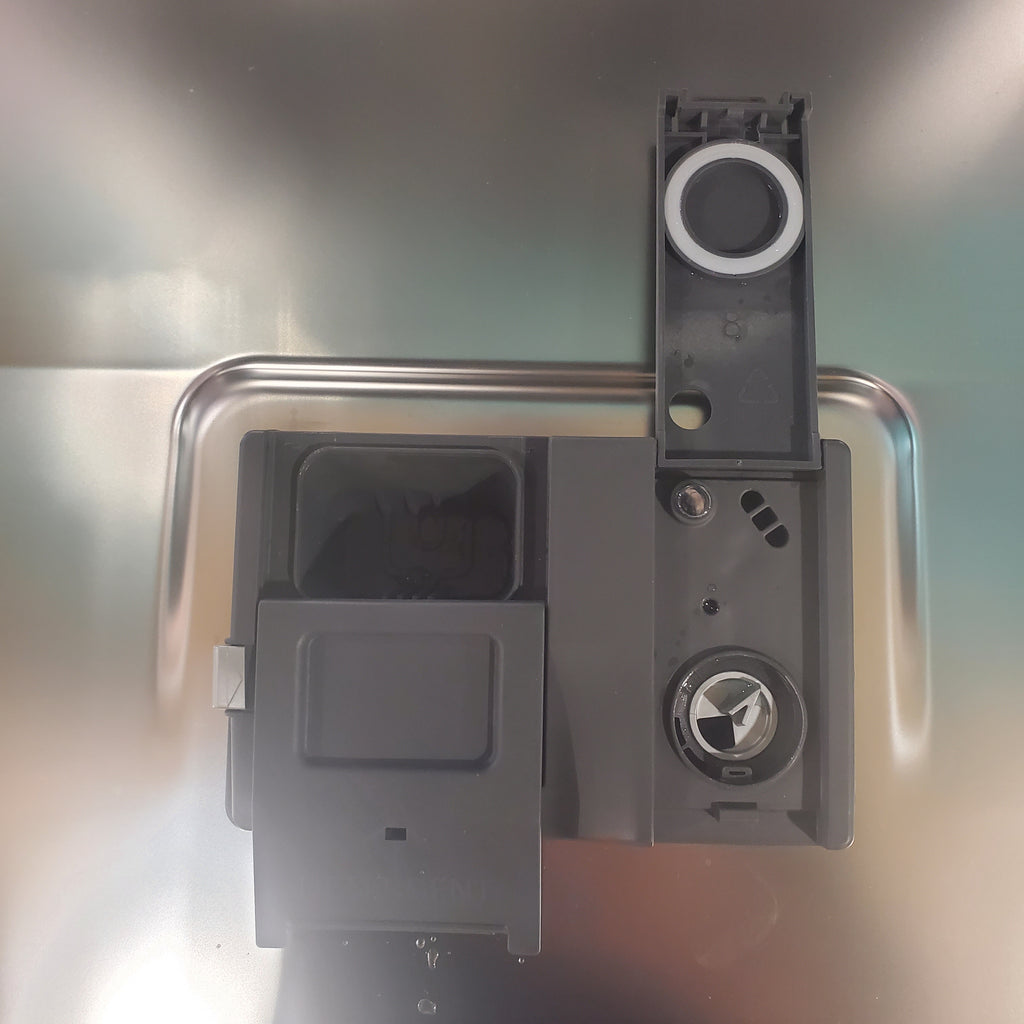

Dispenser Rinse Aid with Indicator and Adjustment
Exterior Style Traditional
Latch Pull with Handle
Leveling System 4 Leveling Legs
Lower Rack Ball-Tip Tines
Number of Cycles 5
Number of Options 11
Number of Place Settings 16
OU Certified No
Product Type Built-In
Rack Color Silver

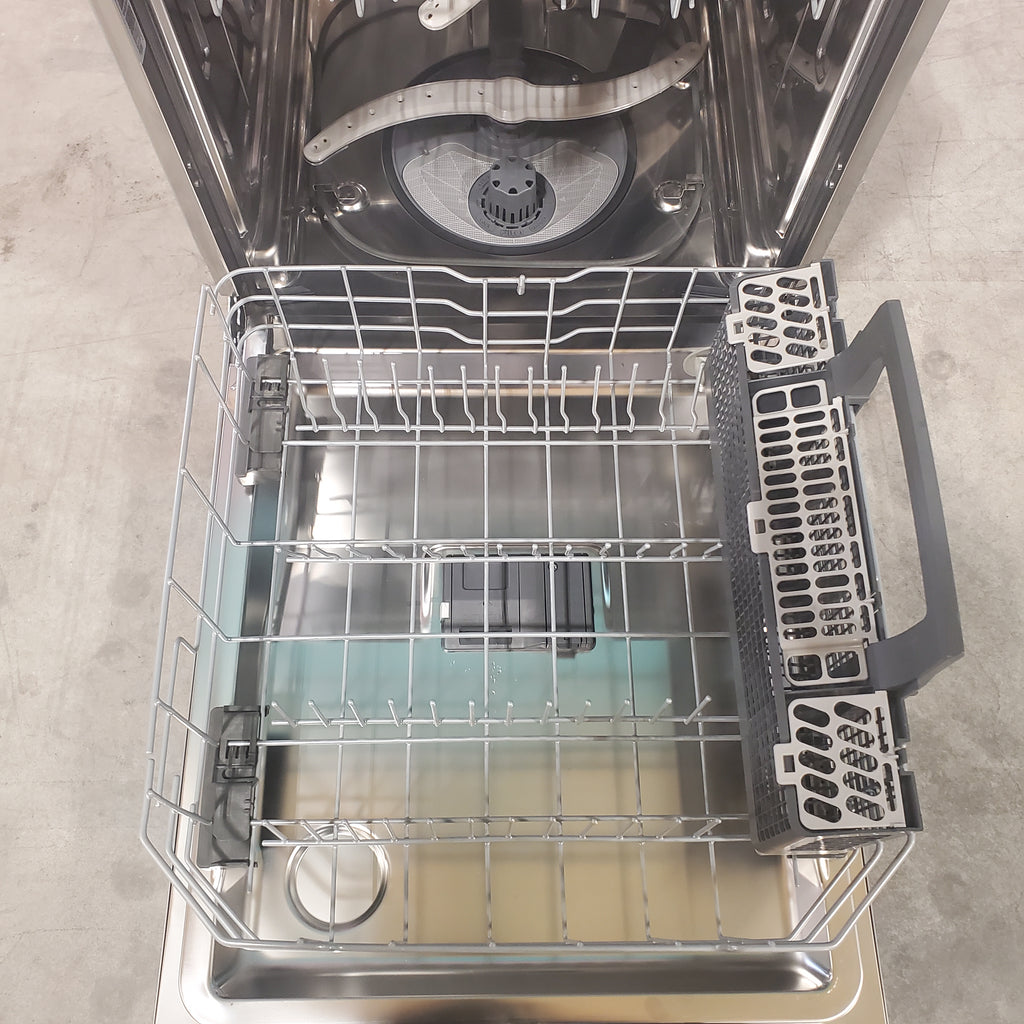

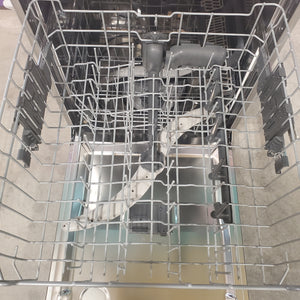

Rack Features Ball-Tipped Tines Adjustable Upper Rack 1 Piece Silverware Basket with 3 Cell Covers
Racking Material Nylon

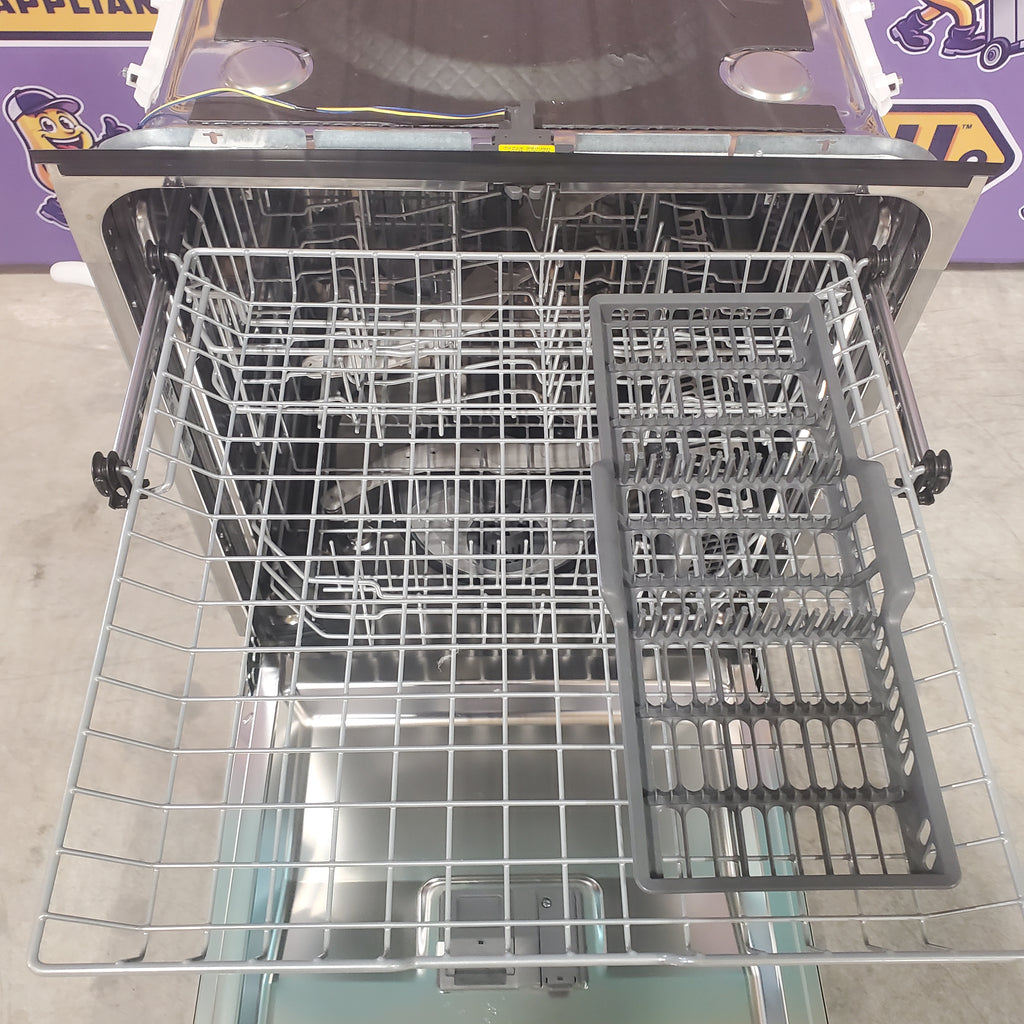

Racking System Full 3rd rack + caddy
Sabbath Mode Yes
Sensor Clean Sensor
Showroom Power Mode Yes
Style Built-In Top Control
Top Rack/3rd Rack 3rd Rack + Caddy

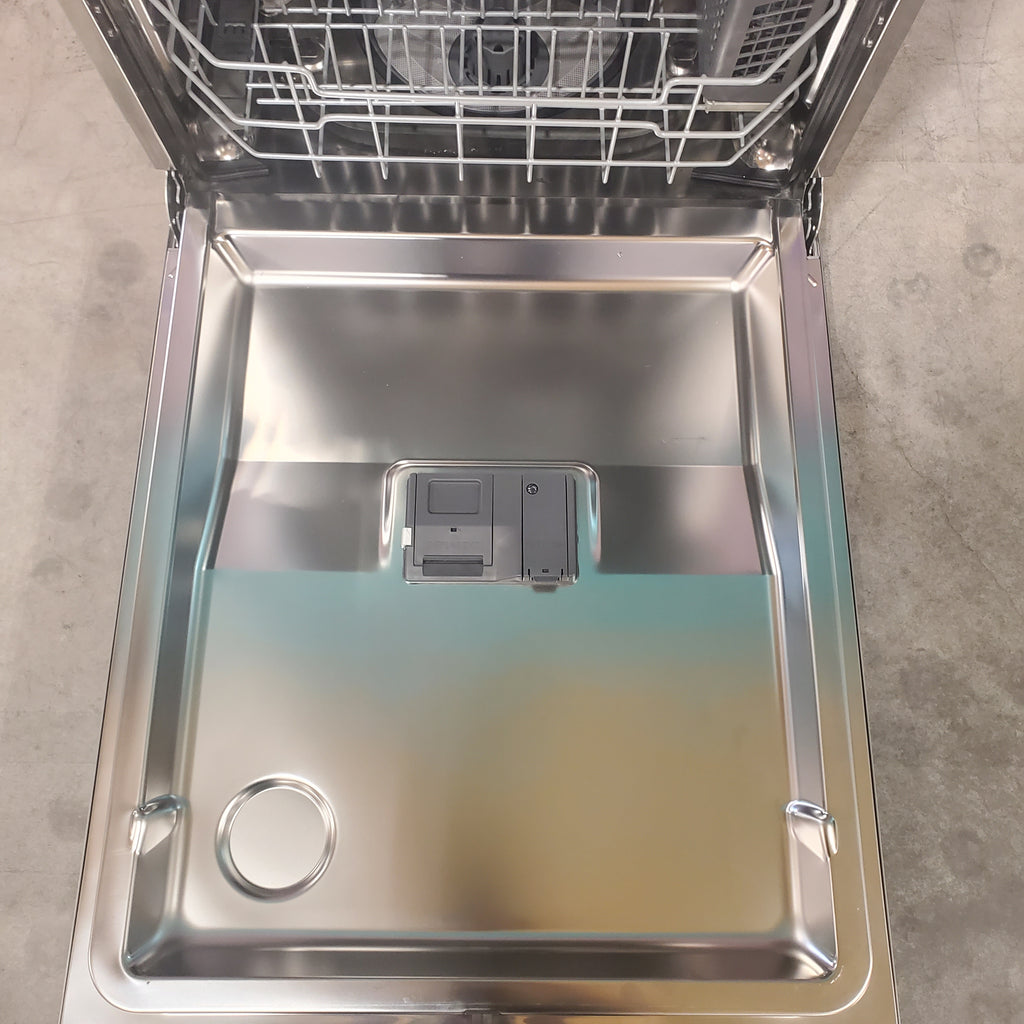

Tub and Door Liner Stainless Steel
Tub Type Tall Tub

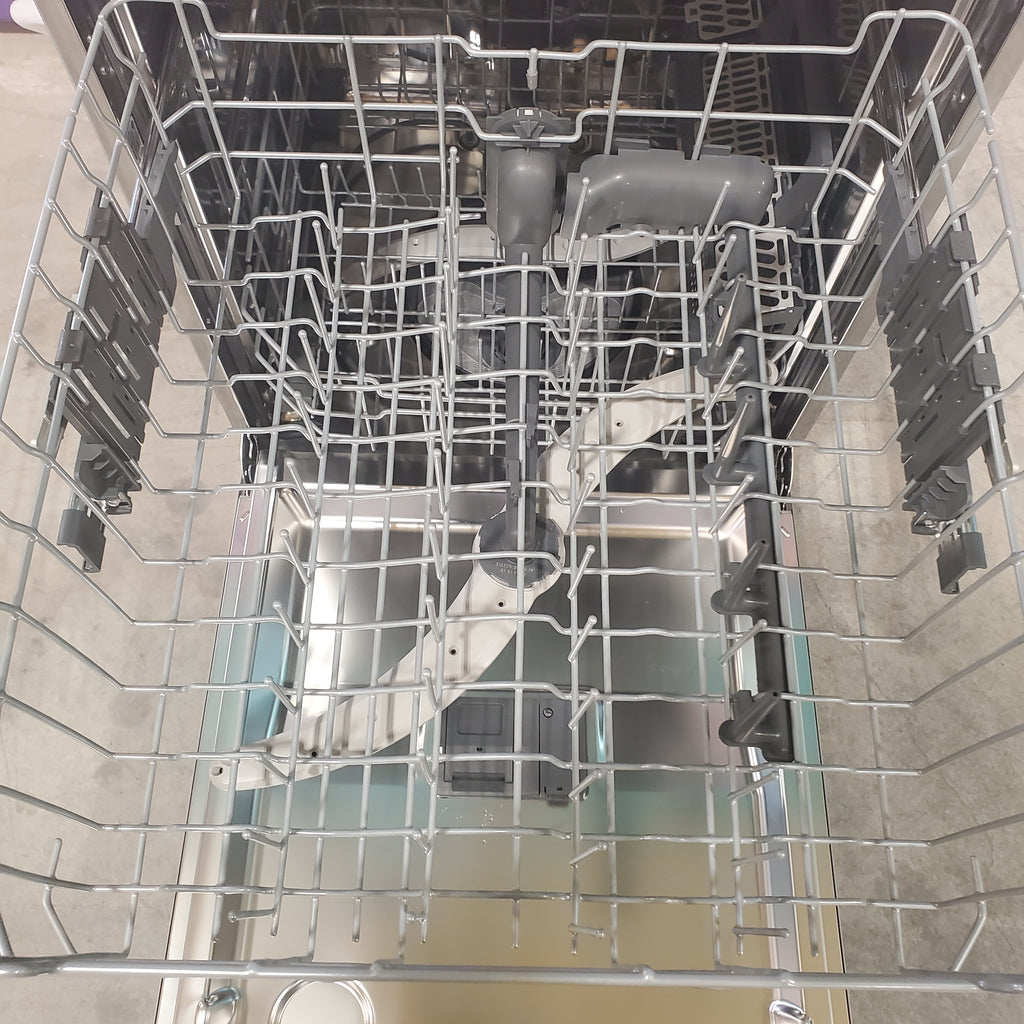

Upper Rack Premium Height Adjustable Ball-Tip Tines Smooth Glide Upper Rack
Wash Arms 3 Wash Levels Lower Middle Upper Bottle Jets Bottle Wash Jets Deep Clean Silverware Jets

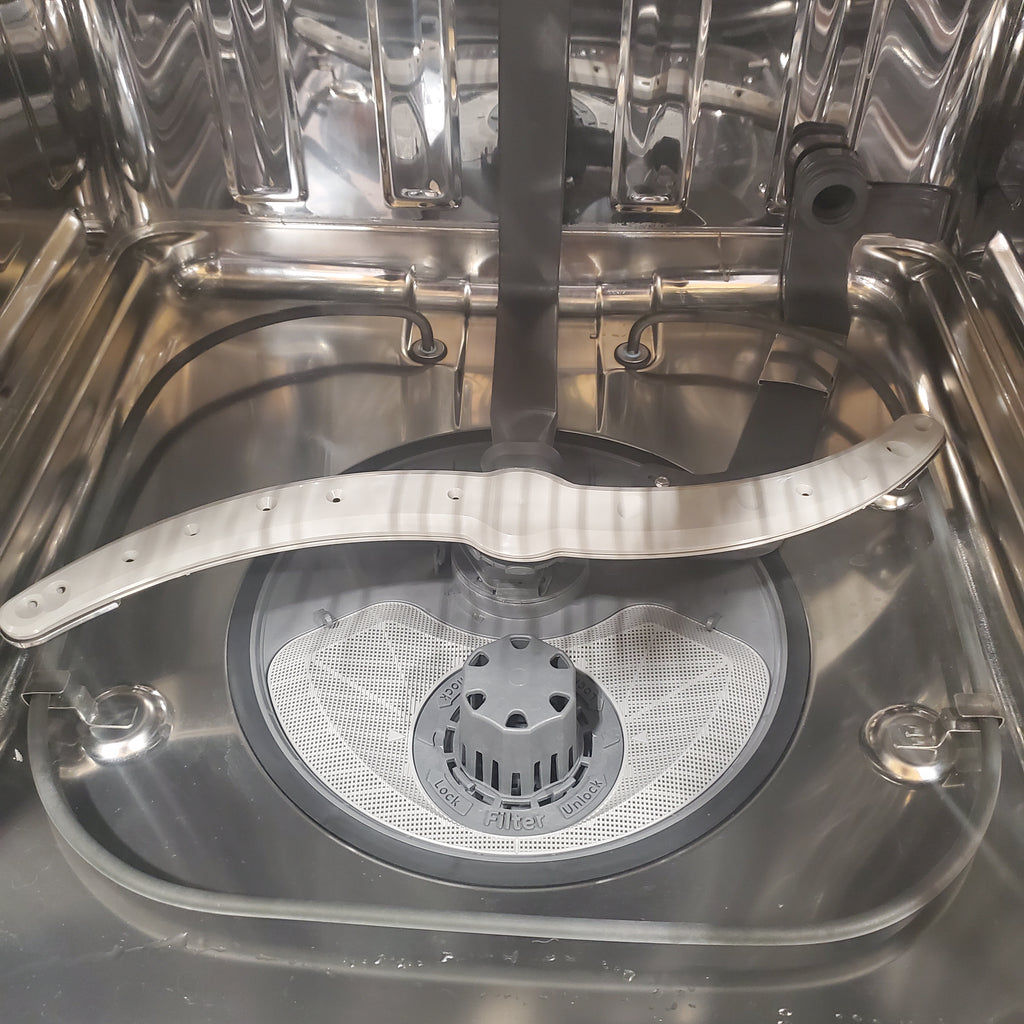

Wash System Features Variable Speed Dual Pumps and Motors Automatic Temperature Control Drain Pump Piranha™ Hard Food Disposer with removable filter Automatic HotStart Bottle Jets (4)
Wash System 600 Series 3-Level
Water Filtration System 100% Filtration with Piranha Hard Food Disposer and Removable Filter
Wi-Fi Connect Optional (Requires part no. PBX23W00Y1)
POWER / RATINGS
Calrod Heater Watts 800/500
Electrical Requirements120V ; 60Hz ; 6.6A
Energy Consumption (kWh/year) 240
Hertz 60
Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Volts/Hertz/Amps 120V; 60Hz; 6.6A
Watts 936
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 112 lbs
Cabinet Width 24 in
Cutout Depth (in) 24 in
Cutout Height (in) 33 1/2 in
Cutout Width (in) 24 in
Depth with Door Open 27 1/2 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Height w/Legs Extended - Maximum Height 34.625 in
Net Weight 99 lbs
Overall Depth 24 in
Overall Height 34 in
Overall Width 23 3/4 in
