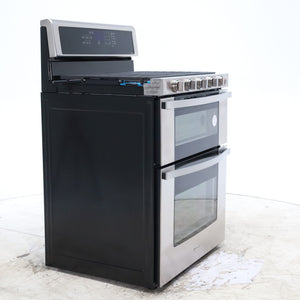

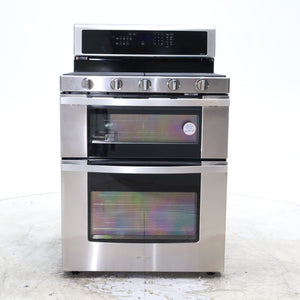

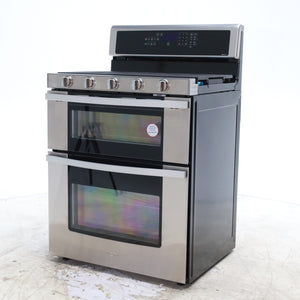

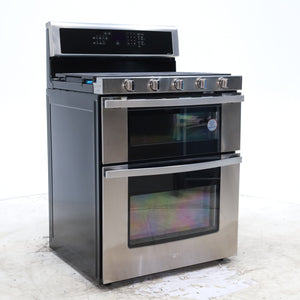

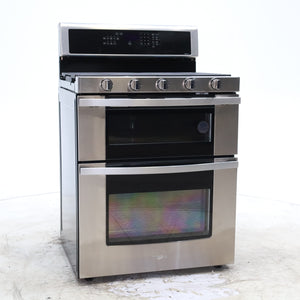

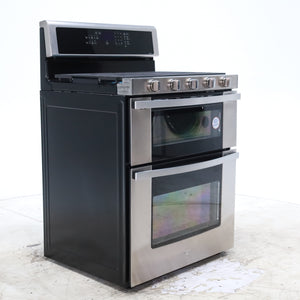

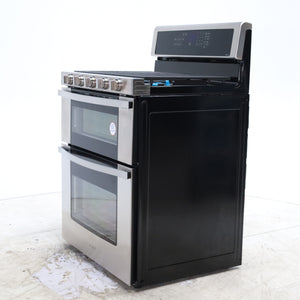

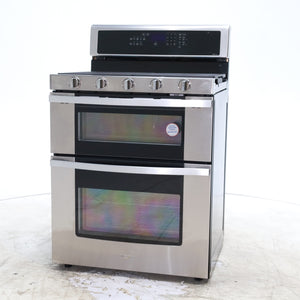

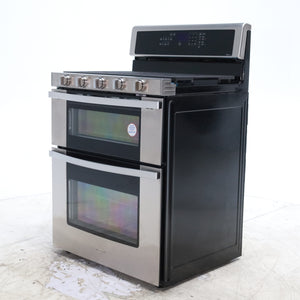

Range Model # WGG745S0FS

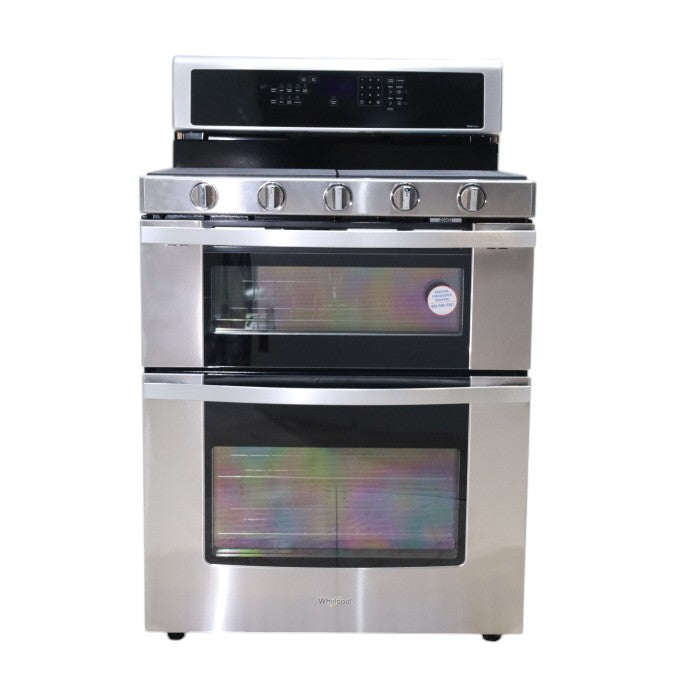

Whirlpool Stainless Steel 30" 6.0 Cu. Ft. Gas Double Oven Range with EZ-2-Lift™ Hinged Grates and True Convection with Third Heating Element
Get dinner on the table quickly with this gas double oven kitchen range. True convection cooking lets you cook food faster. Convection Conversion will do the math for you to adjust cooking times and temperatures. Skip preheating this oven range for frozen favorites like pizza, lasagna, chicken nuggets, fries or pies, thanks to Frozen Bake™ technology. Large griddles and other longer cookware heat evenly on the range stove with the center oval burner. And if you make a mess, EZ-2-Lift™ hinged cast-iron grates provide quick access to wipe up spills on the kitchen range's cooktop.
Key Features
• Frozen Bake™ Technology
• EZ-2-Lift™ Hinged Cast-Iron Grates
• True Convection with Third Heating Element
• SpeedHeat™ Burner
• Center Oval Burner
Frozen Bake™ Technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.

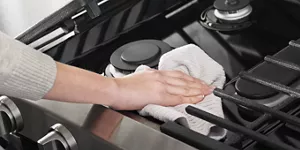

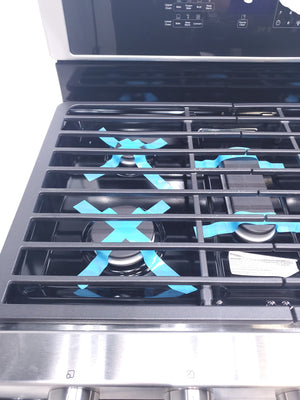

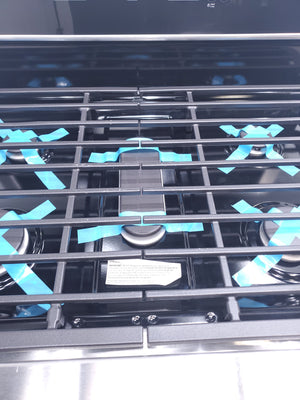

EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.

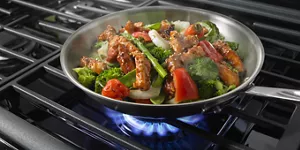

SpeedHeat™ Burner
Sear and boil quickly with the high temperatures provided by the 16,000-BTU SpeedHeat™ burner.

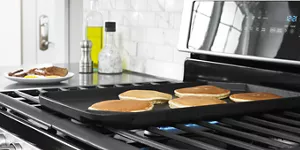

Center Oval Burner
The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.

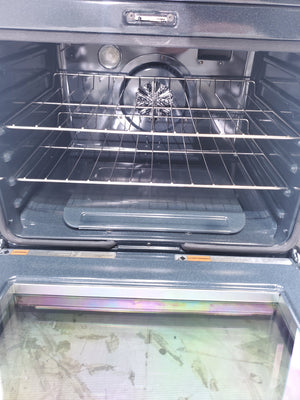

True Convection with Third Heating Element
True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
Convection Conversion
Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
Temperature Sensor
A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
Rapid Preheat (Lower Oven Only)
Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
Steam Clean Option
Clean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent self-clean cycles.
Exterior Details
Handle Color
Stainless Steel
Knob Color
Color Coordinated

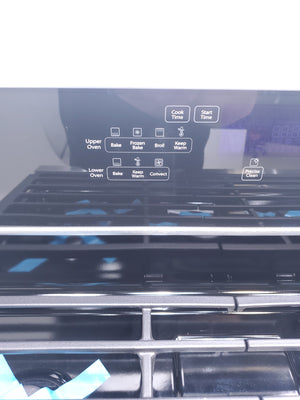

Oven Control Location
Backguard
Oven Control Type
Electronic Touch
Oven Window Size
Extra Large
Cooktop Details
Cooktop Control Location
Front

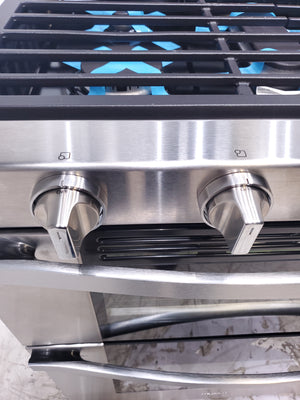

Cooktop Control Type
Knobs
Cooktop Surface Color
Black on Stainless
Cooktop Surface Material
Porcelain Coated Steel
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Oven Cavity Details
Automatic Convection Conversion Temperature Adjust
Yes
Bake Element Power
16,000 BTU
Broiler Element Power
10,000 BTU-Upper
Broiler Location
Top of Oven
Convection Element Type
True
Lower Oven Capacity
3.9 cu. ft.
Oven Cleaning Type
Self-Cleaning
Oven Cooking System
Thermal Upper-Convection Lower
Oven Light Type
Incandescent
Upper Oven Capacity
2.1 cu. ft.
Dimensions
Depth Closed Excluding Handles
27-1/4 in
Depth With Door Open 90 Degree
46 in
Lower Oven Interior Width
25 in
Upper Oven Interior Depth
18-5/8 in
Upper Oven Interior Width
25 in
Details
Oven Automatic Shut-Off
No
Oven Configuration
Double Oven
Oven Selections
Audible Signal, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Frozen Bake, Keep Warm Setting, Language Conversion, Melt, Rapid Preheat, Sabbath Mode, Timer, Warm Hold
Power On Indicator Light
No
Power Outage Compatible
No
Range Configuration
Double Oven
Range Type
Freestanding Double Oven

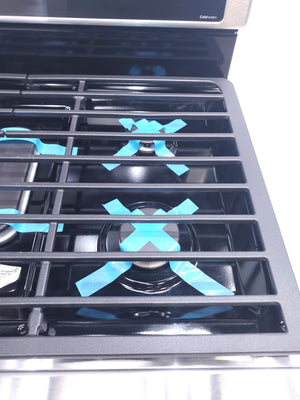

Element/Burner Details
Center Rear Element-Burner Power
7,350 BTU
Center Rear Element-Burner Type
Oval Burner
Cooktop Element Style
Sealed Burner
Left Front Element-Burner Power
16,000 BTU
Left Rear Element-Burner Power
5,000 BTU
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
10,000 BTU
Right Rear Element-Burner Power
5,000 BTU
Right Rear Element-Burner Type
Simmer

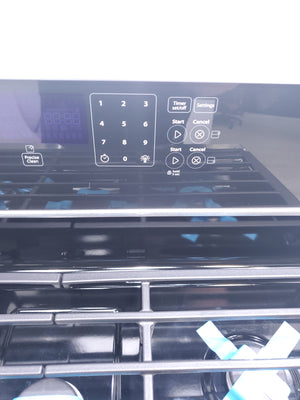

Controls
Electronic Display Type
Digital
Grate Details
Grate Details
Dishwasher Safe, Hinged, Matte Finish, Porcelain Coated Cast Grates
Electrical
Refinements
Features
EZ-2-Lift™ Hinged Grates, Frozen Bake™ Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle
