Controls
Control Lock No
Sabbath Mode No
Cooking Controls
Bake Yes
Broil Yes
Cancel Yes
Delay Clean No
Keep Warm Yes
Kitchen Timer Yes
Lockout No
Off No
Oven Light Yes
Preheat Yes
Probe No
Self Clean No
Temperature Display Yes
Timed Bake No
Warmer Drawer No
Certifications and Approvals
ADA Compliant No
ETL Listed No
UL Listed Yes

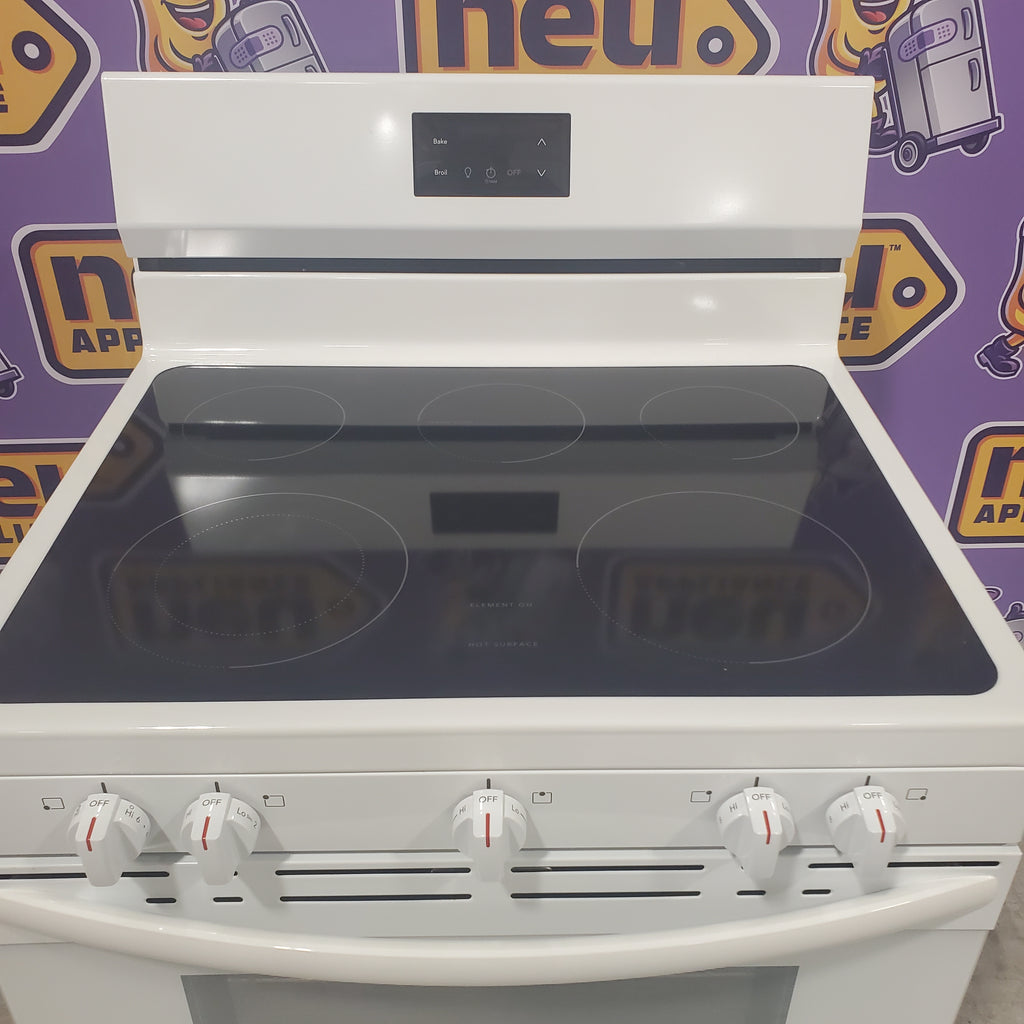

Cooktop
Cooking Surface Type Smooth
Element On Indicator Light Yes
Hot-Surface Indicator Light Yes
Keep Warm Zone Light Yes
Cooktop Performance
Right Front Element Burner Size (Small) 6"
Right Front Element Burner Size (Large) 9"
Right Rear Element Burner Size 6"
Left Front Element Burner Size 9"
Left Rear Element Burner Size 6"
Right Front Element Burner (Small) 1400 Watts
Right Front Element Burner (Large) 3000 Watts
Right Rear Element Burner 1200 Watts
Left Front Element Burner 3000 Watts
Left Rear Element Burner 1200 Watts
Keep Warm Burner Location Center Rear
Dimensions and Volume
Height 46 9/16"
Width 29 7/8"
Depth 25 3/4"
Depth With Door 90° Open 48 5/8"
Depth With Handle 29 1/4"
Oven Interior Height 19 3/4"
Oven Interior Width 24 3/8"
Oven Interior Depth 19 1/8"
Oven Capacity 5.3 Cu. Ft.

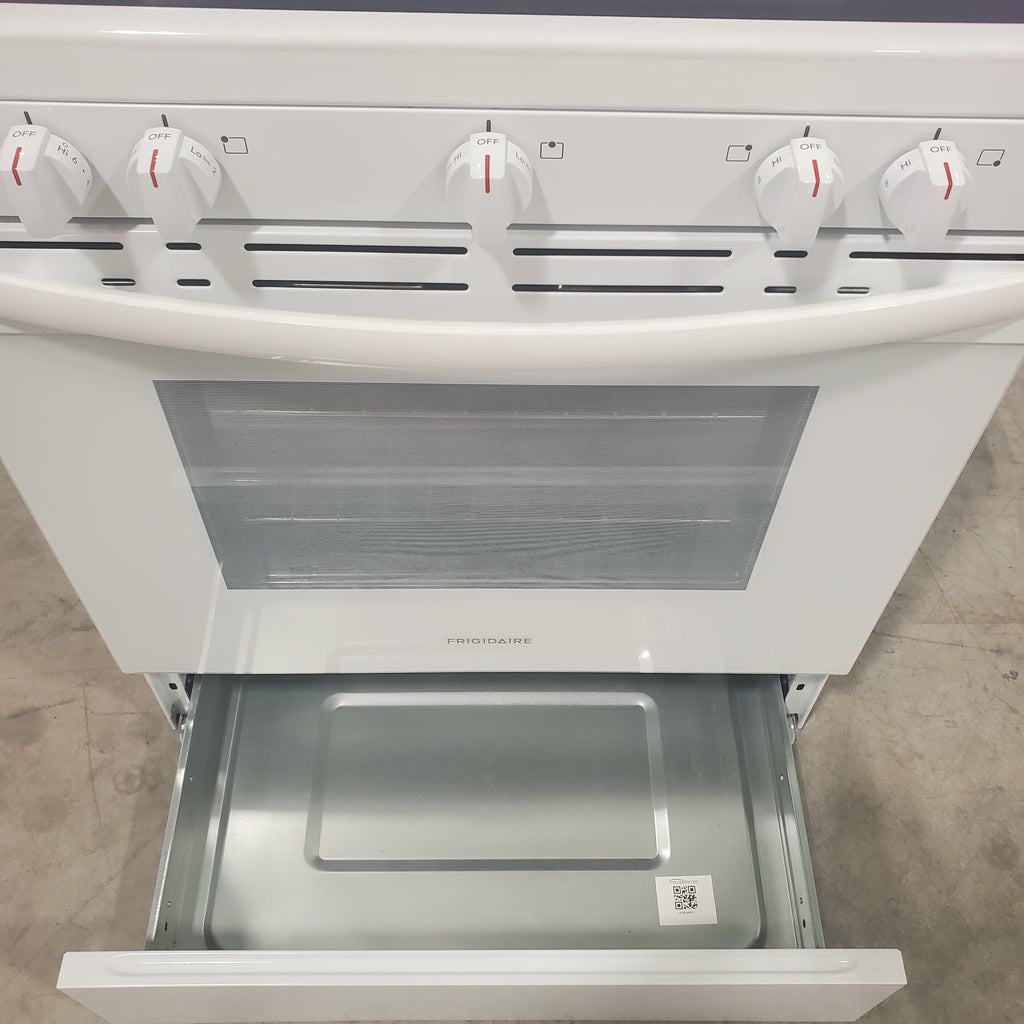

Drawer
Drawer Type Storage
Electrical Specifications
Minimum Circuit Required 40 Amps
Voltage Rating 240 V
Installation
Adjustable Leveling Legs Yes
Power Supply Connection Location Bottom Center
Exterior

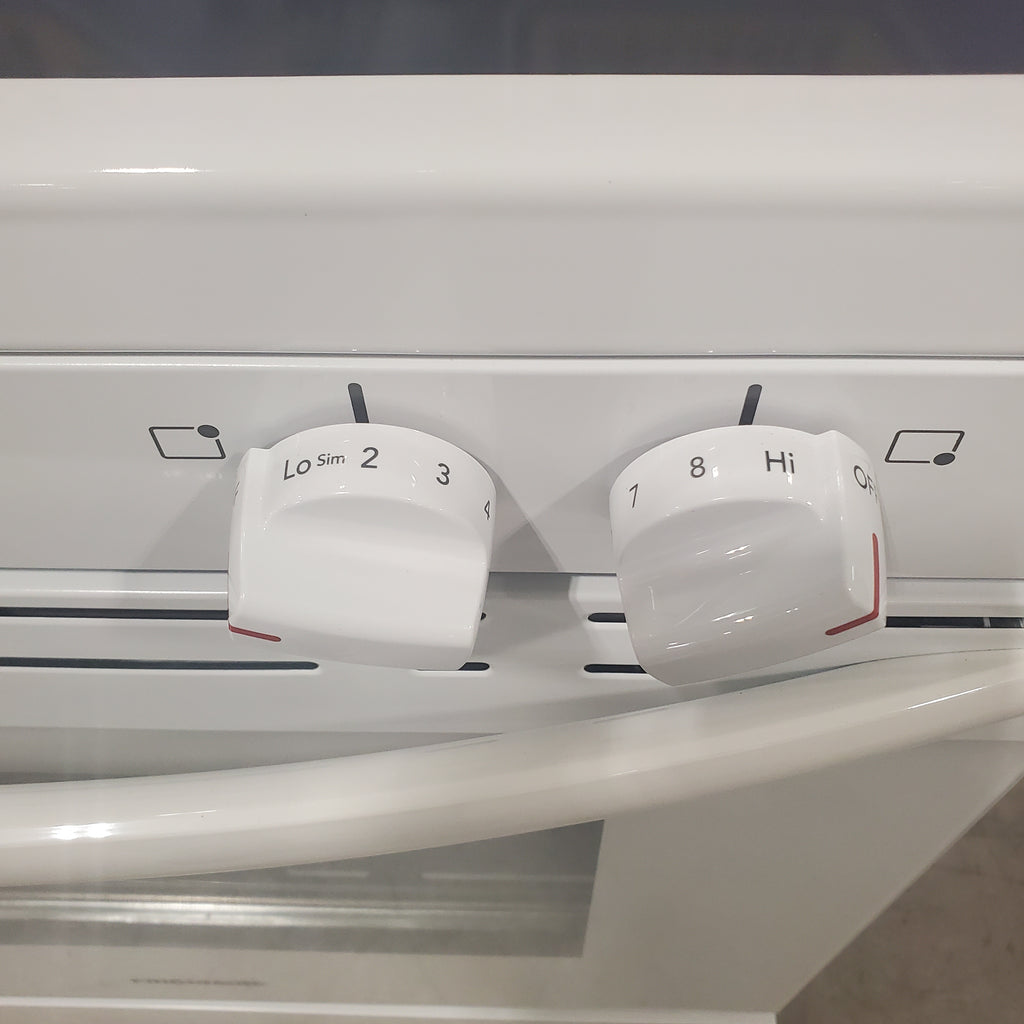

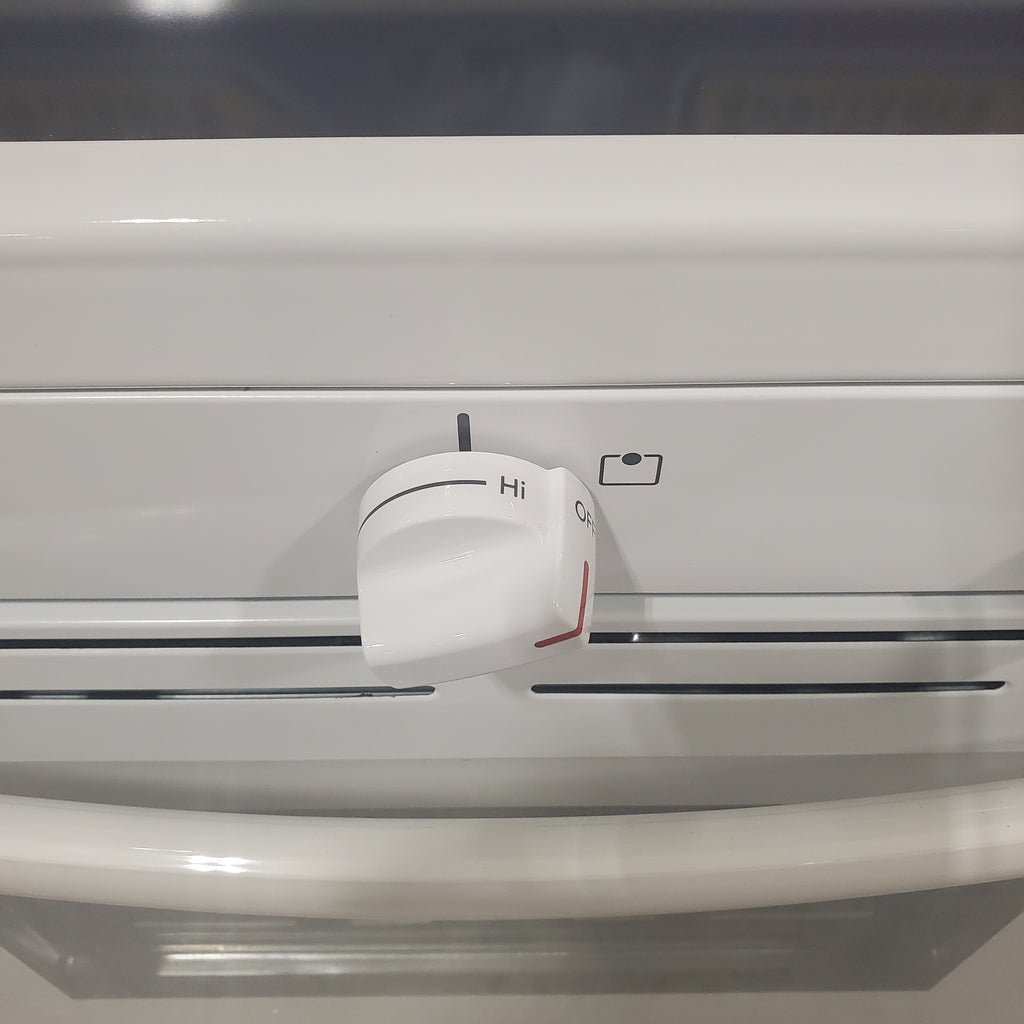

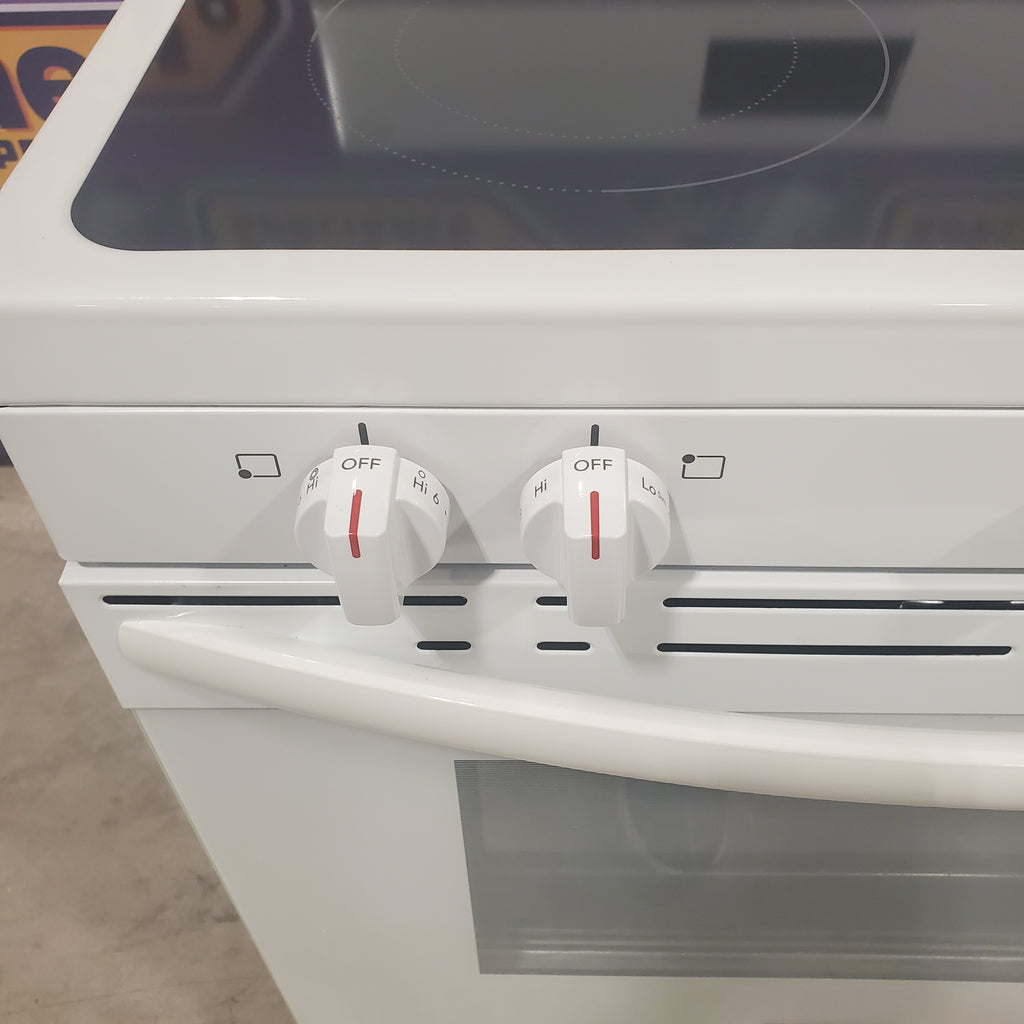

Cooktop Finish Black
Knob Color White
Knob Material Plastic
General Specifications
Product Weight156.75 lbs

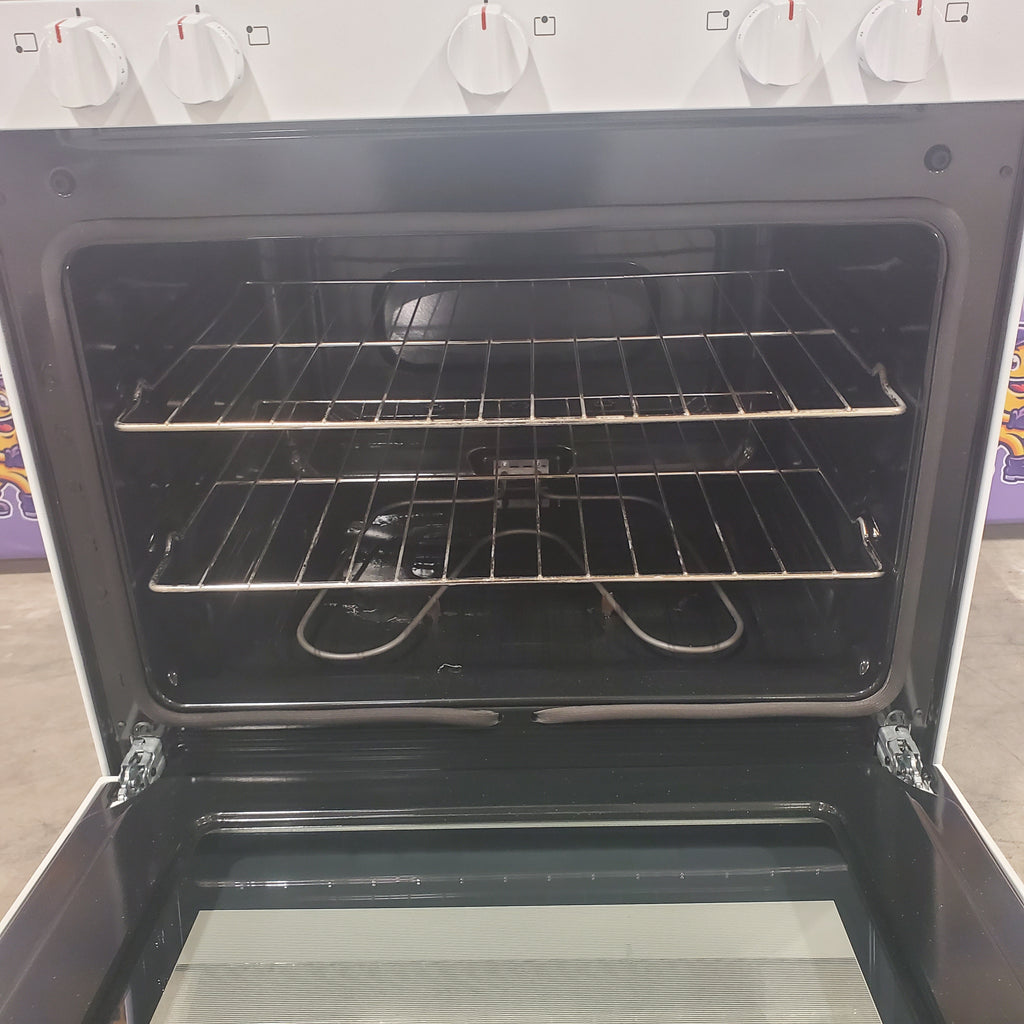

Oven
Bake Element 2600 Watts
Bake System Yes
Broil Element 3000 Watts
Broil System Yes
Number of Rack Positions 6
Rack Position Type Nickel Ladder
Rack Type 1 Flat
Rack Type 1 Quantity 2

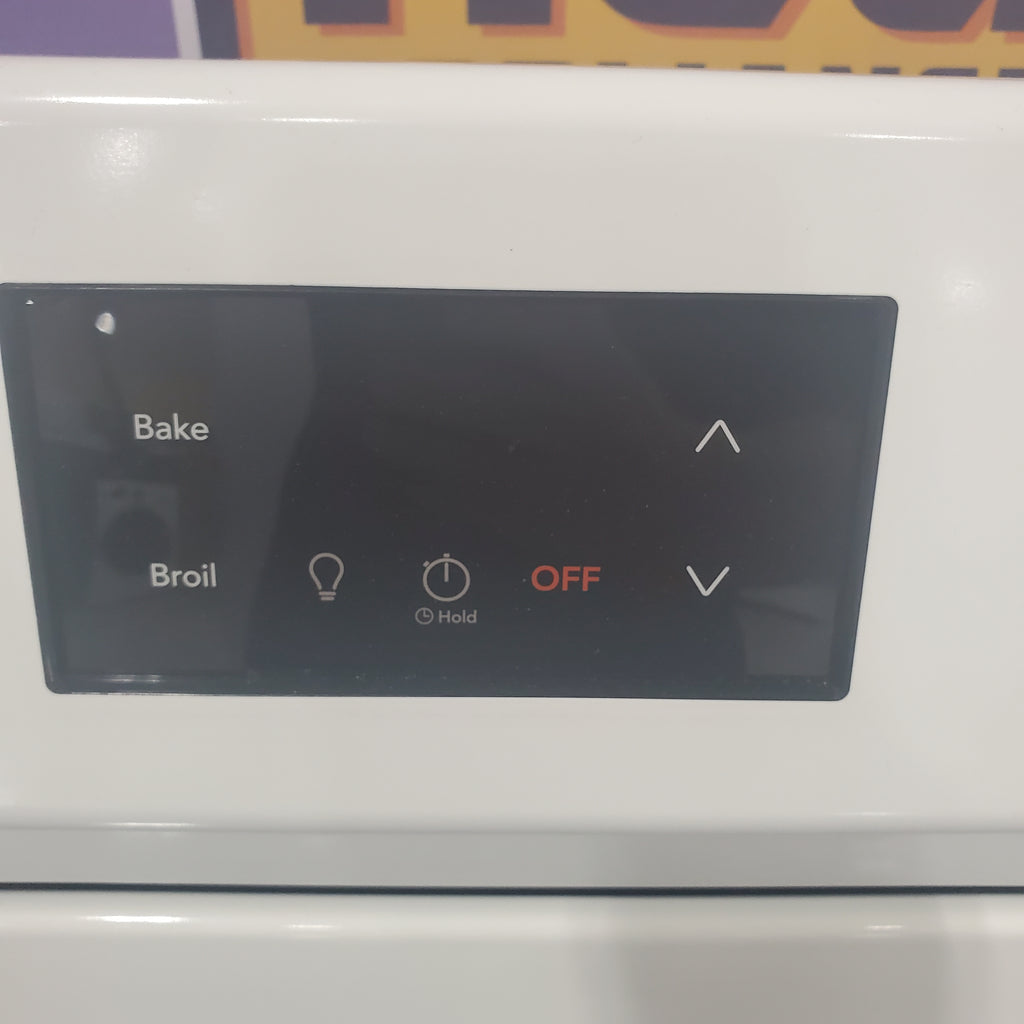

Display
Display Type Membrane
