Washer Specifications
Capacity
5.2 cu. ft.
Dial-A-Cycle™
Yes
Electric Dryer Option
DLEX8900B
Gas Dryer Option
DLGX8901B
Series
LG
Touch Buttons
Yes
Type
Front Load Washer
Type of Display
LED
CEE Tier
Tier 3 (Advanced)
ENERGY STAR® Most Efficient
Yes
ENERGY STAR® Certified
Yes
IMEF
3.1
IWF
2.9
No. of Washer Programs
12
Washer Programs
Allergiene®, Bedding, Bright Whites, Delicates, Downloaded, Heavy Duty, Normal, Perm. Press, Speed Wash, Sportswear, Towels, Tub Clean
No. of Washer Options
13
Washer Options
Drum Light, Signal, Control Lock, TurboWash®, Add Item, Cold Wash, Delay wash, Extra Rinse, Pre-wash, Remote Start, Spin Only, Steam, Wi-Fi
No. of Wash/Rinse Temps
5
Wash/Rinse Temps
Cold, Extra Hot, Hot, Tap Cold, Warm
No. of Spin Speeds
5
Spin Speeds
Extra / High, High, Low, Medium, No Spin
Water Levels
Load Sensing
No. of Soil Levels
5
Turbowash®
Yes
Turbowash® Type
TurboWash® 2.0
AI DD®
Yes
Allergiene™ Cycle
Yes
ColdWash™ Option
Yes
Sanitary Cycle
Yes
Steam Technology
Yes
4 Tray Dispenser
Prewash, Main Wash (with liquid detergent cup), Bleach, Fabric Softener
Auto Suds Removal
Yes
Control Lock
Yes
Drum Light
Yes
End of Cycle Signal
Yes
Leveling Legs
Yes
LoadSense
Yes
True Balance® Anti-Vibration System
Yes
ThinQ® Smart Technology
Yes
Energy Monitoring
Yes
SmartDiagnosis™ (v3.0)
Yes
ThinQ Care™
Yes
Tub Clean Coach
Yes
Wifi
Yes
Axis
Horizontal
Max RPM
1300
Motor Type
Inverter Direct Drive Motor
All Available Colors
Black Steel (B)
Cabinet
Painted Steel
Control Panel
Plastic
Door / Rim
Glass/Chrome
Door Cover
Dark Blue Tinted Square Cover
NeveRust™ Stainless Steel Drum
Yes
Top Plate
Painted Steel
AAFA
Yes
Washer Electrical Requirements
120V, 10 Amps
Ratings
UL Listed
Washer Power Source Type
Electric
LG Sidekick™ Pedestal Washer
WD200CB
Pedestal
WDP5B
Stacking Kit
KSTK2
Carton (WxHxD)
31 3/8" x 44 3/4" x 33 3/4"
Depth with Door Open
58 5/8"
LG Sidekick™ Pedestal Washer (WxHxD)
29" x 14 1/8" x 30 7/8" (50 1/2 D with drawer open)
Pedestal (WxHxD)
29" x 13 5/8" x 29 1/2" (44 3/4 D with door open)
Product (WxHxD)
29" x 40 3/4" x 32 7/8"
Weight (Carton)
251.5 lbs
Weight (Product)
225 lbs
Weight (Product/Carton)
225 / 251.5 lbs.
Width
29"
Dryer Specifications
No. of Dryer Programs
12

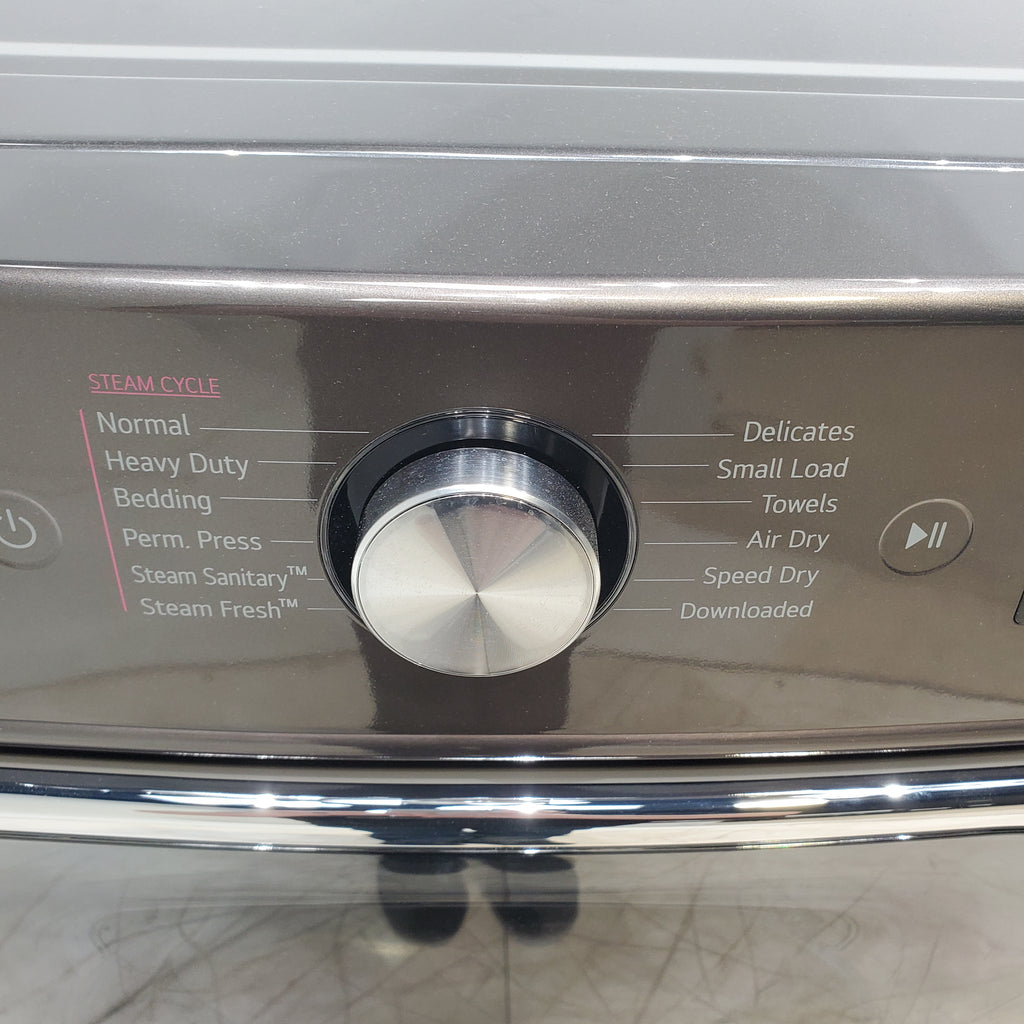

Dryer Programs
SteamFresh™, SteamSanitary™, Towels, Air Dry (Manual Dry), Perm. Press, Speed Dry (Manual Dry), Bedding, Delicates, Downloaded, Heavy Duty, Normal, Small Load
No. of Dryer Options
12
Dryer Options
Control Lock, Damp Dry Signal, Less Time, More Time, TurboSteam, Drum Light, Remote Start, Wi-Fi, Energy Saver, Reduce Static, Signal, Wrinkle Care
Drying Levels
Damp Dry, Less Dry, More Dry, Normal Dry, Very Dry
Dry Modes
No
Manual Dry Times
20 min., 30 min., 40 min., 50 min., 60 min., More Time/Less Time
Temperature Settings
High, Medium High, Medium, Low, Ultra Low
Dryer Capacity
9 cu.ft.
Product Color
Black Steel
Matching Washer
WM8900HBA
Dial-A-Cycle™
Yes
Electric Dryer Option
DLEX8900B
Gas Dryer Option
DLGX8901B
Series
LG
Steam
Yes
Touch Buttons
Yes
Type of Display
LED
CEF
3.94
ENERGY STAR® Certified
Yes
AI Sensor Dry™
Yes
Precise Temperature Control with Variable Heater
Yes
Sensor Dry
Yes
Steam Technology
Yes
3 Minute Installation Check
Yes
4 Adjustable Legs
Yes
Control Lock
Yes
Drum Light
Yes
End of Cycle Signal
Yes
Leveling Legs
Yes
Wrinkle Care Option
Yes
Remaining Time Display/Status Indicator(s)
Yes
Reversible Door
Yes
FlowSense™ Duct Clogging Indicator
Yes
LoDecibel™ Quiet Operation
Yes
Vent Type
Vented
Venting Option
4 Way Venting
ThinQ® Smart Technology
Yes
Cycle Monitoring and Notification
Yes
Energy Monitoring
Yes
Remote Start and Cycle Monitor
Yes
SmartDiagnosis™
Yes
SmartDiagnosis™ (v3.0)
Yes
ThinQ Care™
Yes
Wifi
Yes
ThinQ UP™
No
All Available Colors
Black Steel (B)
Aluminized Alloy Steel Drum
No
Cabinet
Painted Steel
Door / Rim
Square w/ Chrome trim
NeveRust™ Stainless Steel Drum
Yes
Transparent Door Glass
Yes
Dryer Power Source Type
Electric
Dryer BTU Rating
N/A
Dryer Electrical Requirements
240V, 60Hz, 26A
Ratings
CSA Listed
LP Conversion Kit
N/A
Pedestal
WDP5B
Side Venting Kit
383EEL9001B
Stacking Kit
KSTK2
Depth with Door Open
59"
Pedestal (WxHxD)
29" x 13 5/8" x 29 1/2" (44 3/4 D with door open)
Product (WxHxD)
29" x 40 3/4" x 32 1/8"
Weight (Carton)
170.6 lbs
Weight (Product)
155 lbs
Width
29"
