APPEARANCE
Color Appearance
Stainless Steel
Control Panel Color
Matte Dark Slate
Fingerprint Resistant

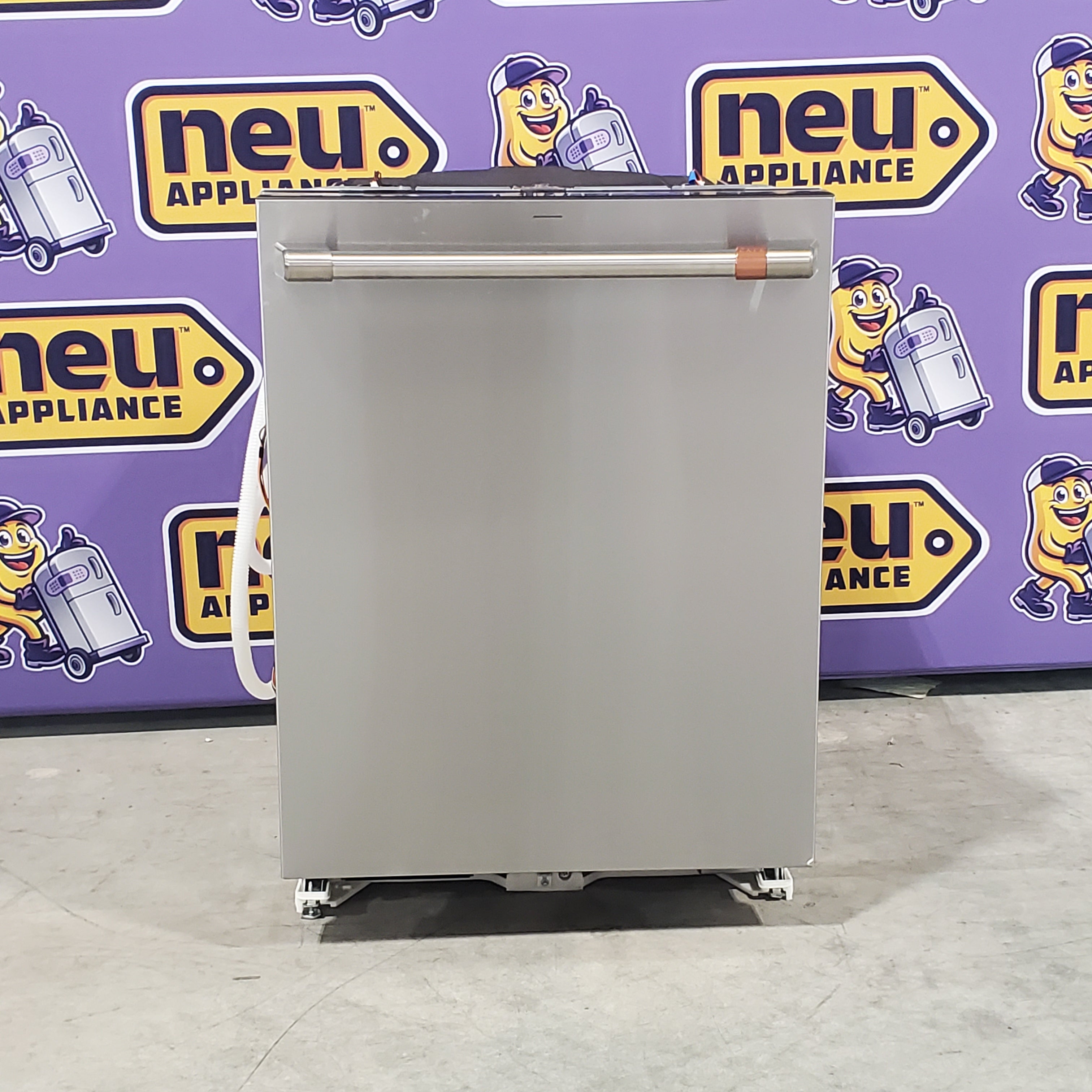

Door Appearance
Full-length flat door
Door Style
Long Door with Top Controls
Handle
Café
Handle Color
Brushed Stainless
Handle Design
Customizable
Installation
Side Installation or Top Installation Included
Built-Up Floor Capable
Flush Cabinet Installation
ECONOMICAL / QUIET
Door Insulation
Insulation
Mastic
Motor Type
Variable Speed
Outer Wrap
Full-wrap Blanket
Bitumen
Quiet Features
Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim
Quiet Package
39 dBA
FEATURES
Additional Protection
Active Flood Protect
Leak Defense with Active Flood Protect
Connected Capabilities
Amazon Alexa
Google Home

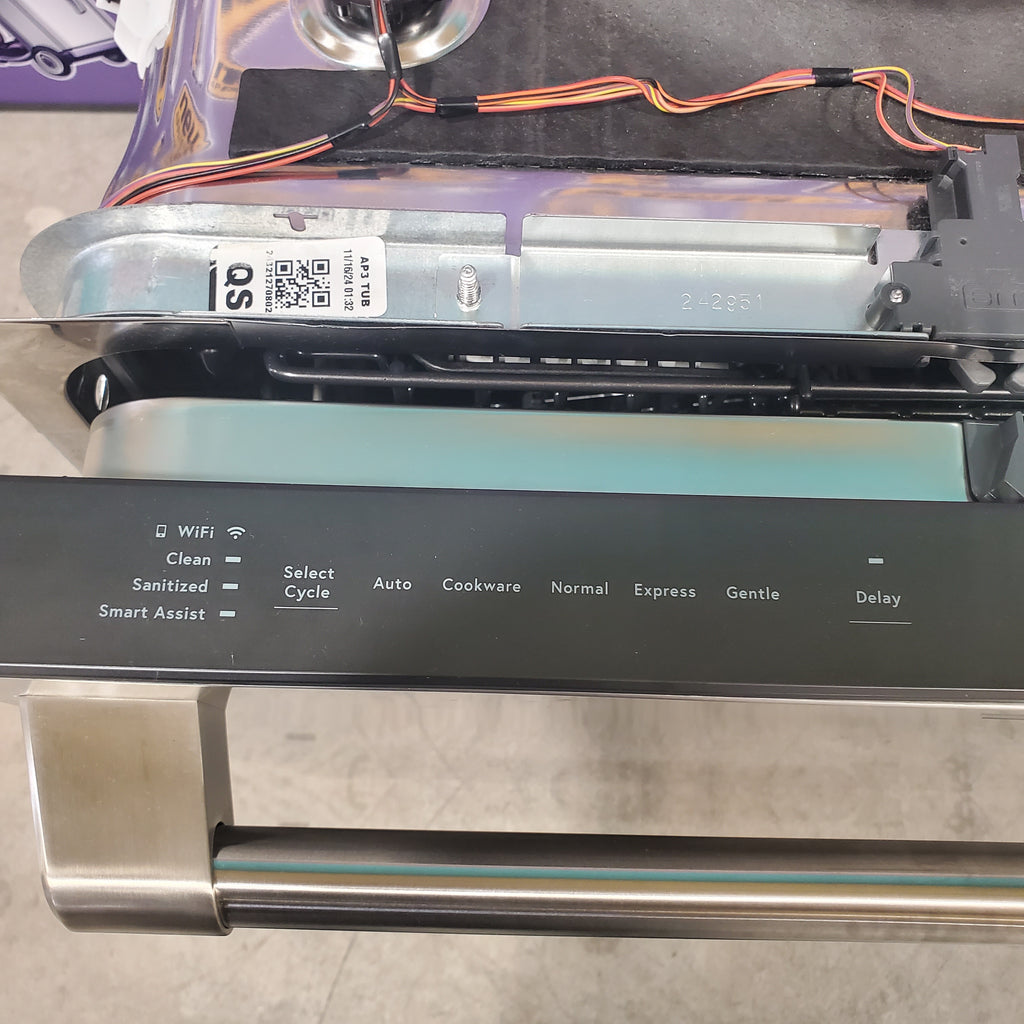

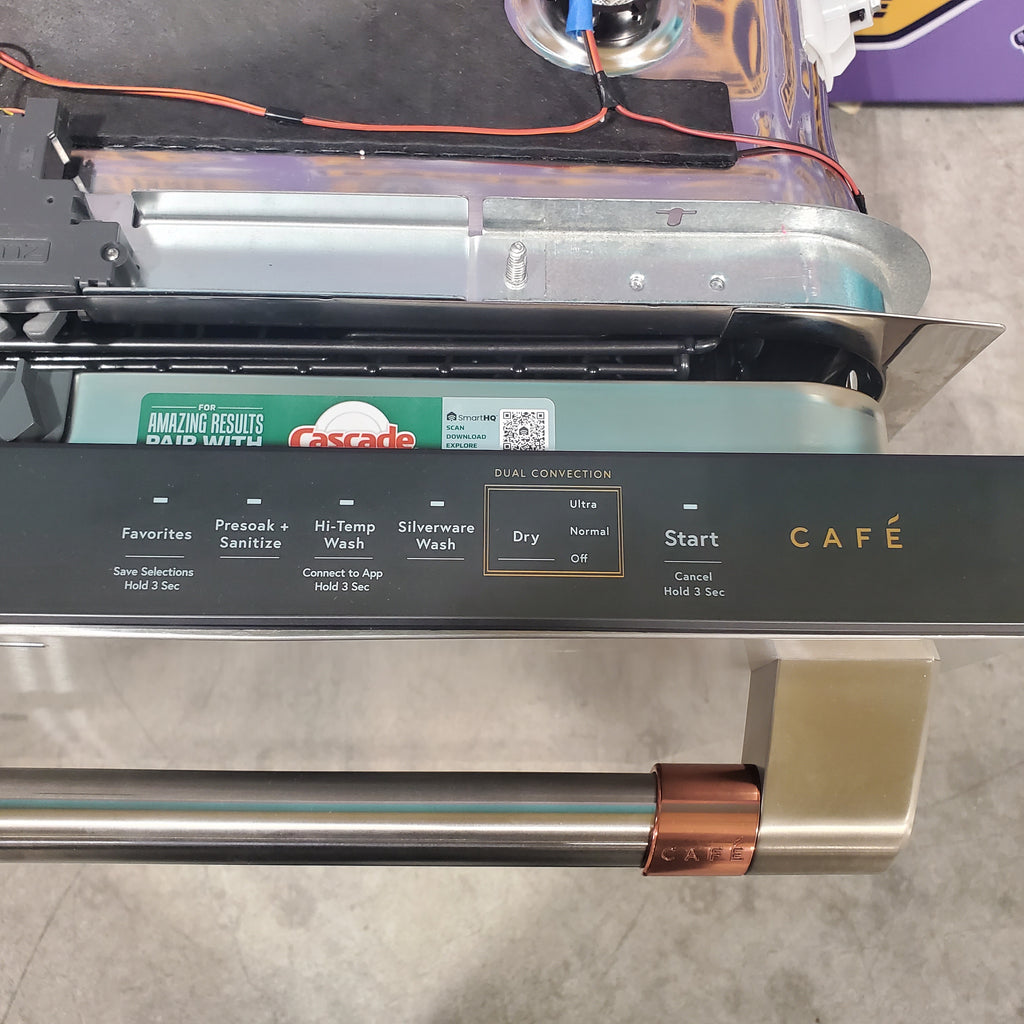

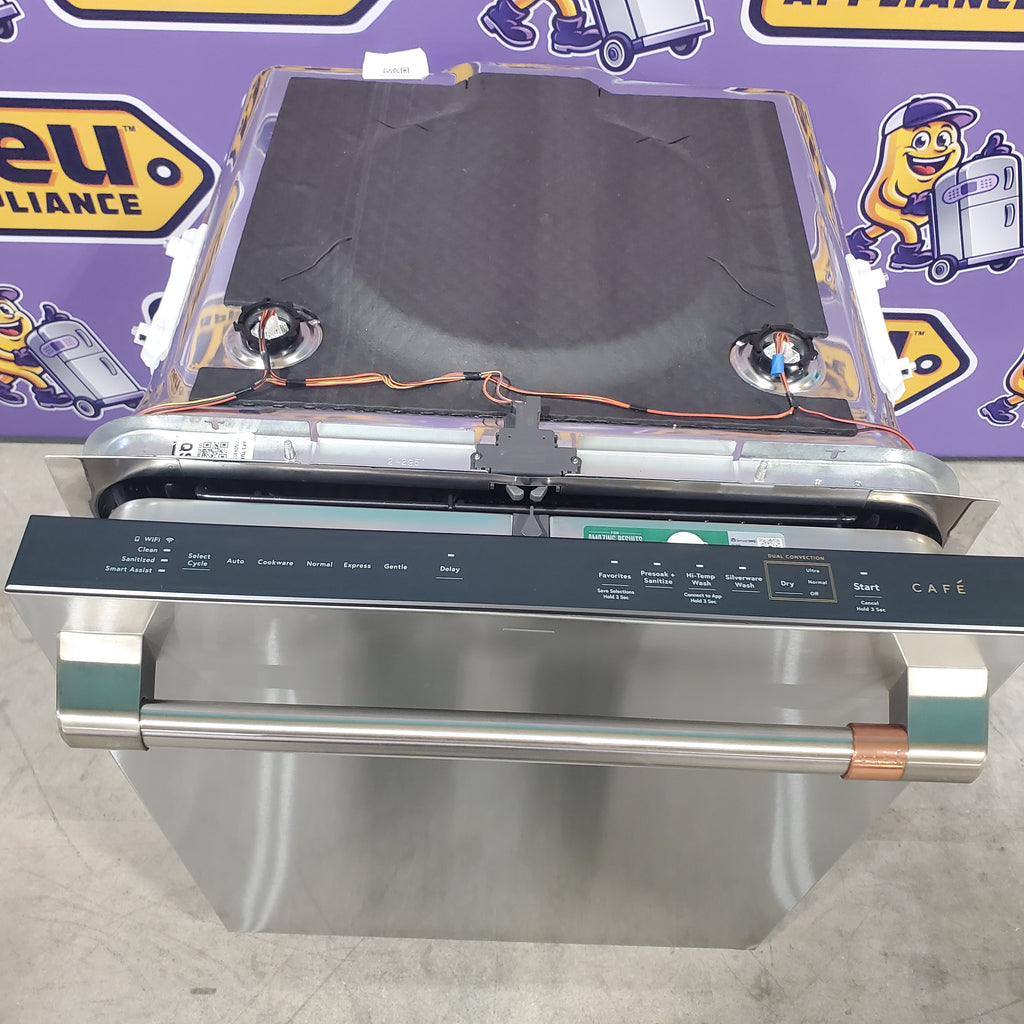

Control Type
Top Controls
Cap Touch Controls
8 Touchpads
Cutlery Tray
One piece removable 3rd rack
Dishwasher Control Features
Cycle Countdown with Bi-Color LED Status Light on door
Cycle Progress Indicators: Clean/Sanitized/Smart Assist/WiFI/Remote Enabled
Last Cycle Memory
Audible End-of-Cycle Signal
Dishwasher Cycles
Auto Wash
Cookware
Normal
Gentle
Express
Cascade Platinum Plus (on app)
Dishwasher Drying Features
Dual Convection Ultra Dry
Ultra/Normal/Off
Fan Assist Dry
Dishwasher Options
Delay Start 1-12 Hr.
Bottle Wash (on app)
Wash Zones/Half Load (on app)
Favorites (on app)
WiFi/Remote Enabled
Sabbath Mode
Start/Cancel
Favorites
Presoak + Sanitize (Certified to NSF Standard 184)
Hi-Temp Wash
Silverware Wash
Heated Dry Off
Normal Dry
Ultra Dry
Lock Controls

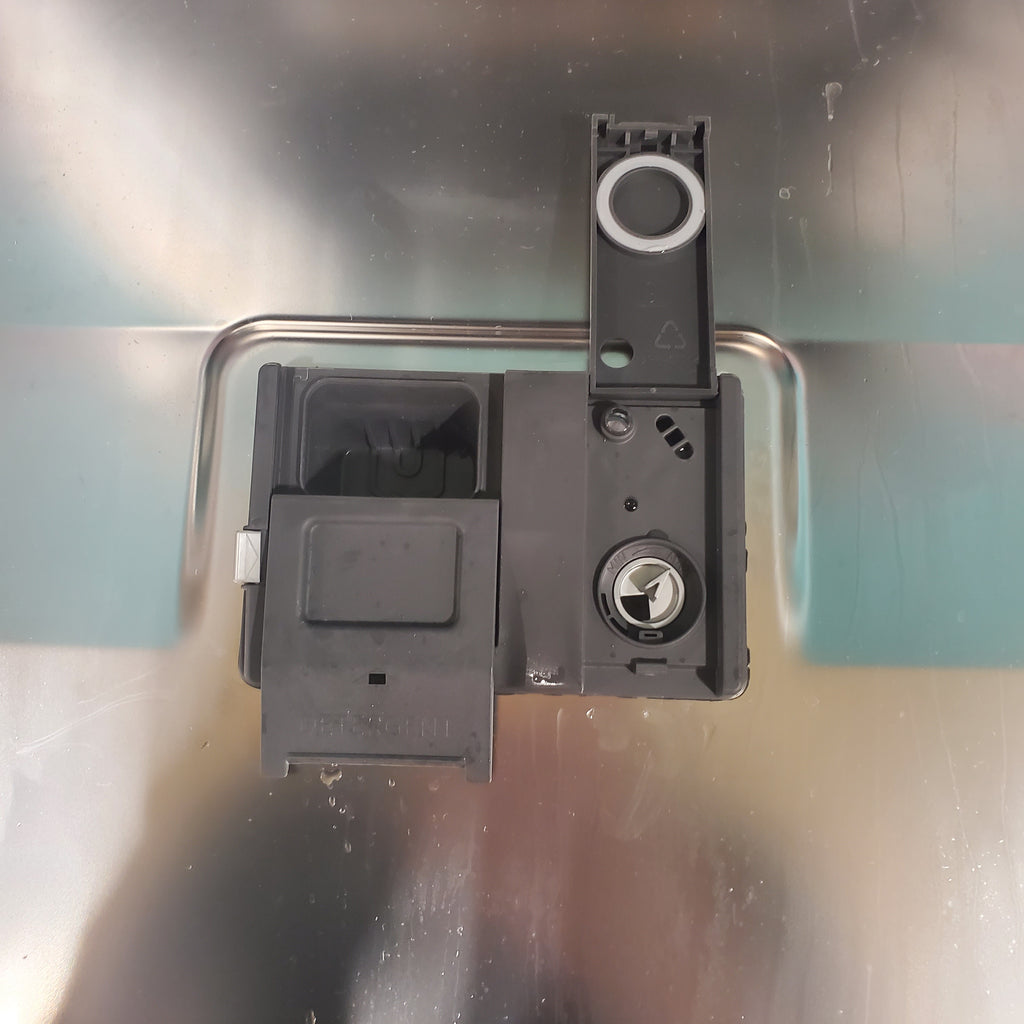

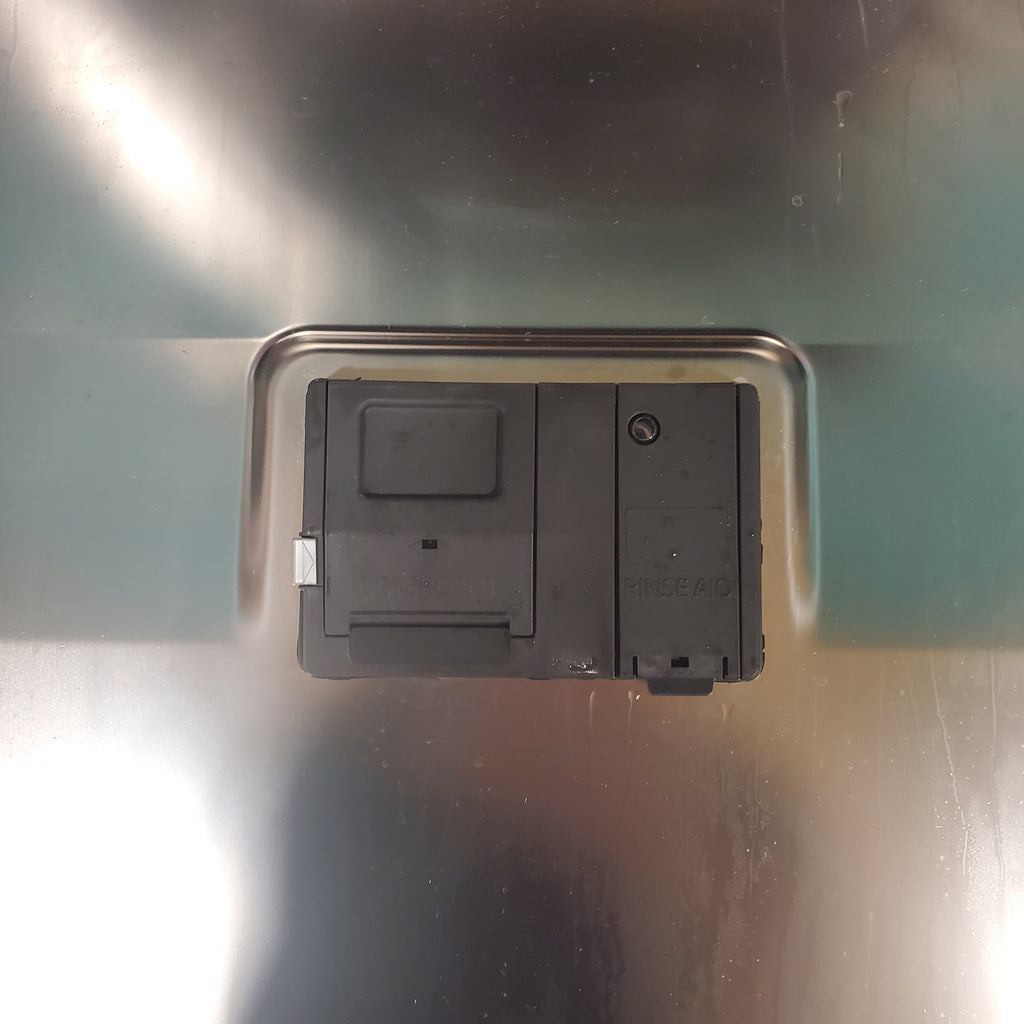

Dispenser
Rinse Aid with Indicator and Adjustment
Electronic Low Rinse Aid Sensor
EcoBalance Compatible
Yes
Exterior Style
Customizable Professional
Floor Protection
Leak Defense with Active Flood Protect - Leak Pan with Sensor
Interior Lighting
Yes - 4 - Café Expression
Latch
Pull with Handle
Leveling System
3 Point Leveling

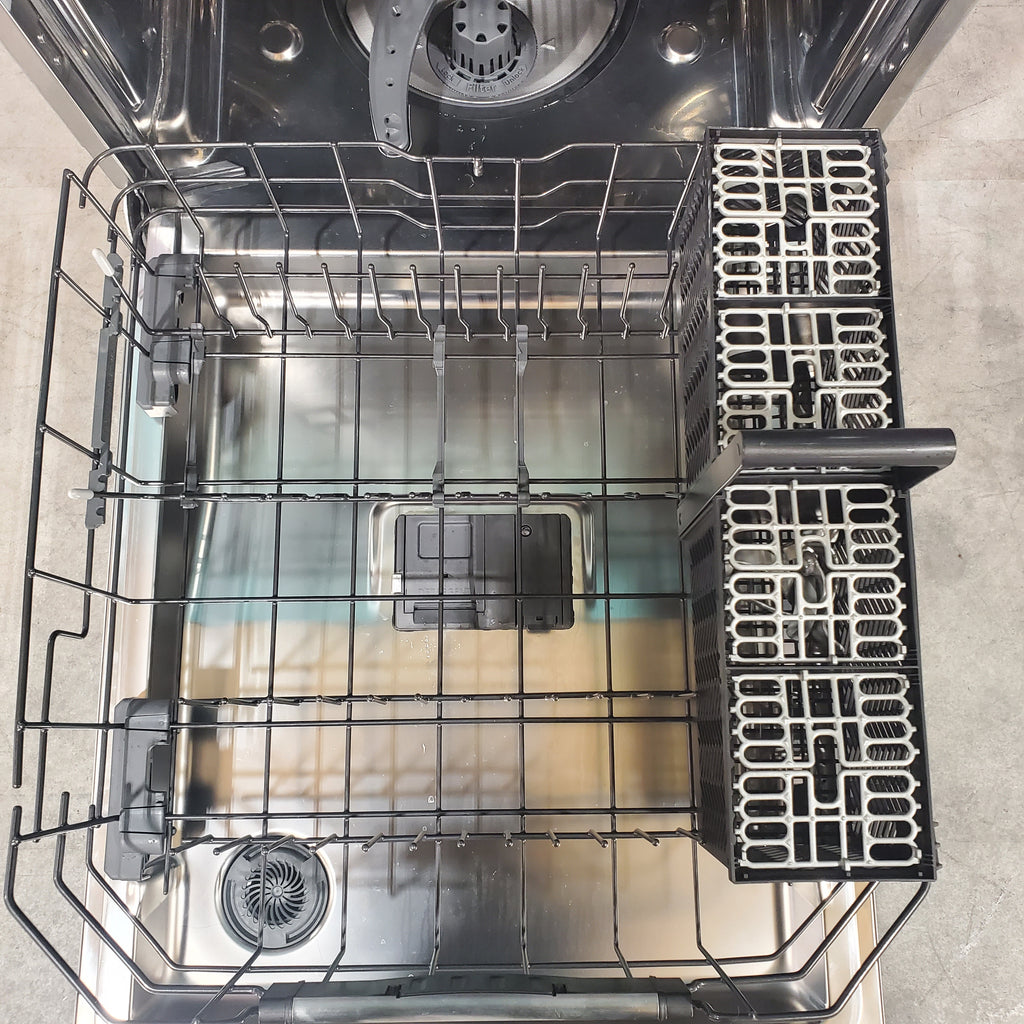

Lower Rack
Ball-Tip tines
1/2 fixed tines, 1/2 fold down tines
1 Rack handle
Number of Cycles
6
Number of Options
15
Number of Place Settings
16
OU Certified
No
Product Type
Built-In
Rack Color
Black Pearl
Rack Features
Lid Manager
Ball-Tipped Tines
Adjustable Upper Rack
Full Extension Slides - Upper
Cafe Flex Silverware Basket
Racking Material
Nylon

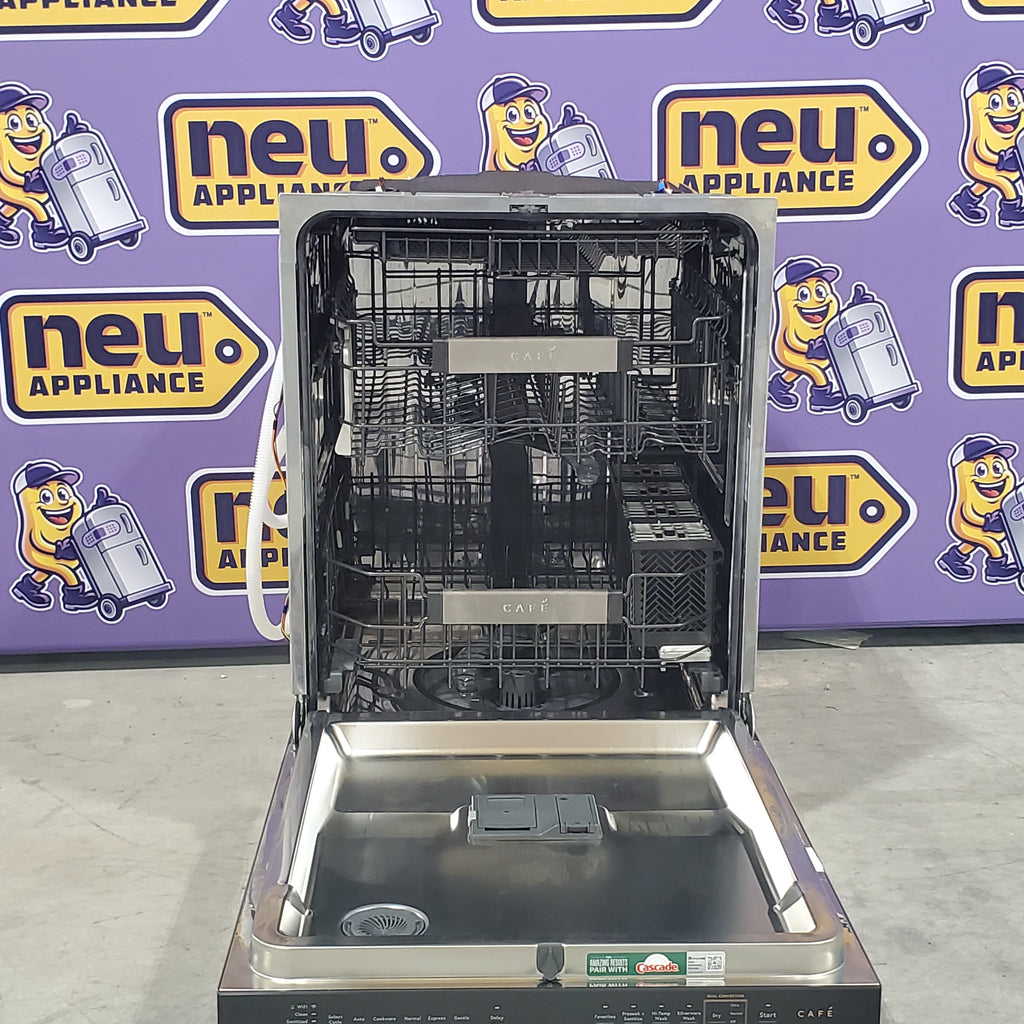

Racking System
Full 3rd rack
Sabbath Mode
Yes
Sensor
Clean Sensor
Showroom Power Mode
Yes
Smart Assist
Yes
Style
Built-In Top Control

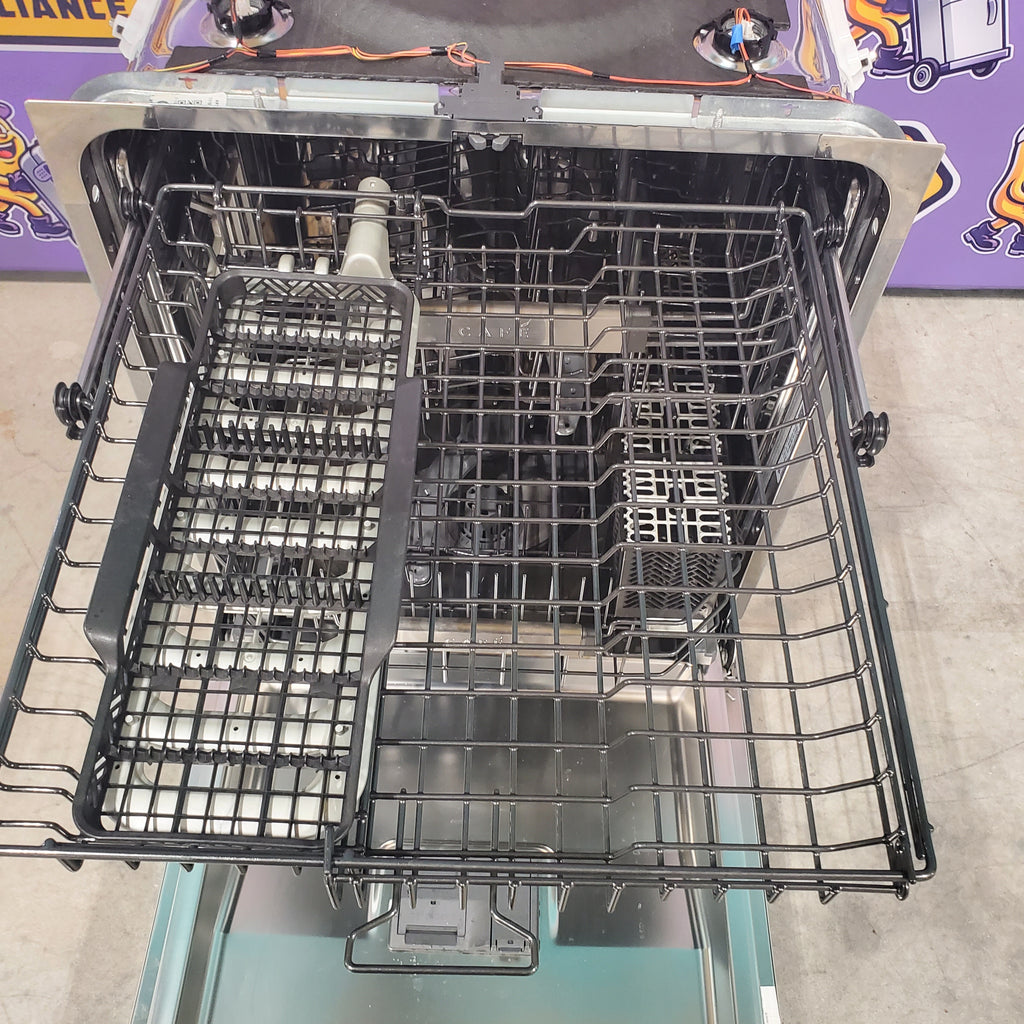

Top Rack/3rd Rack
Washing
Sliding 3rd Rack w/ removable caddy

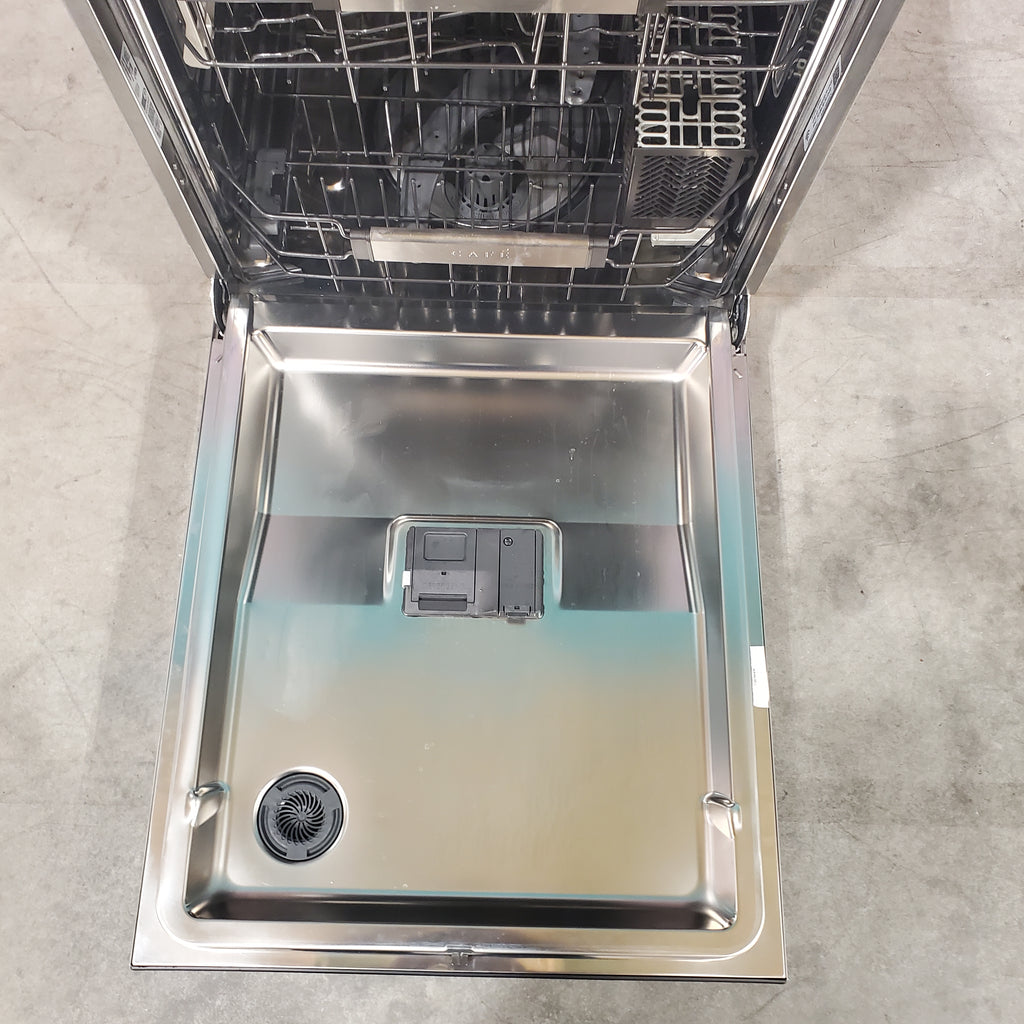

Tub and Door Liner
Stainless Steel
Tub Type
Tall Tub

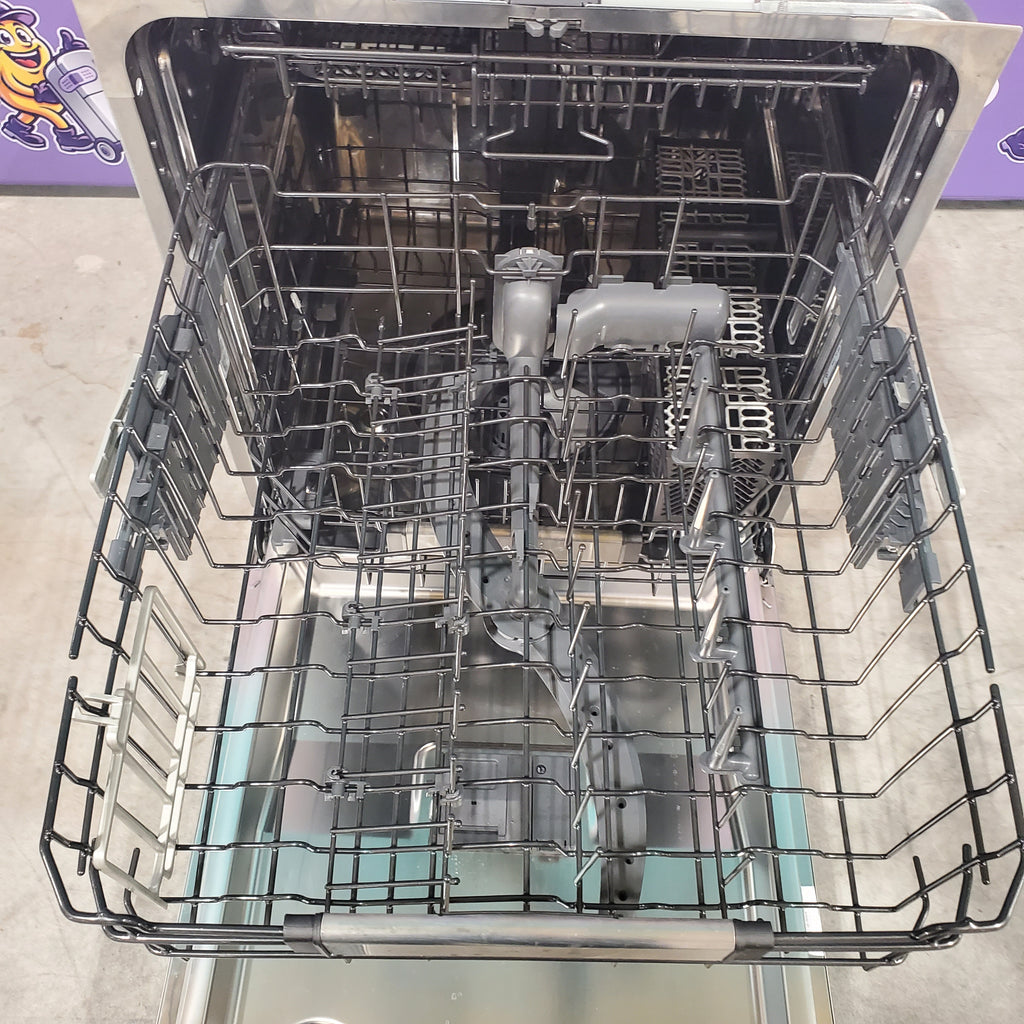

Upper Rack
Premium Height Adjustable
Ball-Tip Tines
1/2 fixed tines, 1/2 fold down tines
Fixed tines with Bottle Jets
1 Rack handle
Smooth Glide Upper Rack
Lid Manager
Wash Arms
4 Wash Levels
Lower
Middle
Upper
3rd Rack
Bottle Jets
Deep Clean Silverware Jets
Wash System Features
Variable Speed Dual Pumps and Motors
Middle Wash Arm

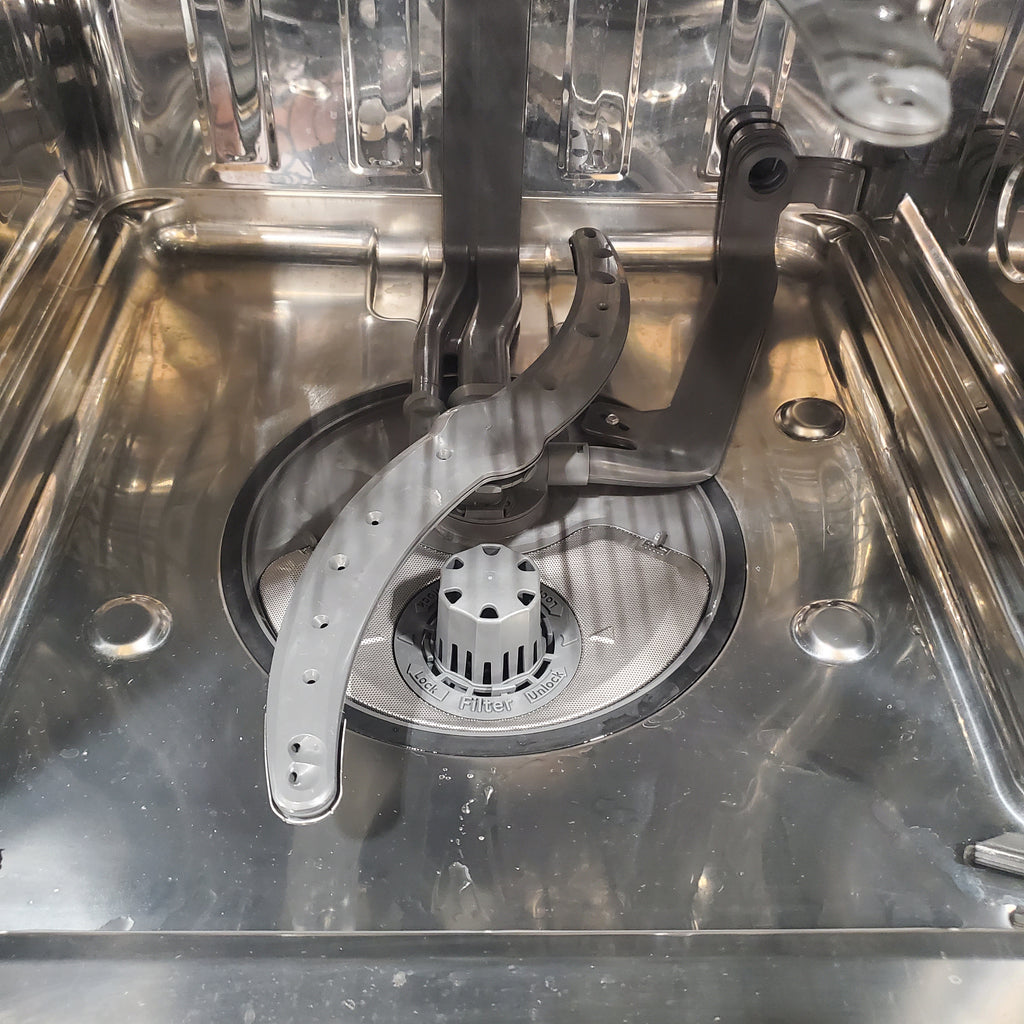

Lower Wash Arm
Automatic Temperature Control
Drain Pump

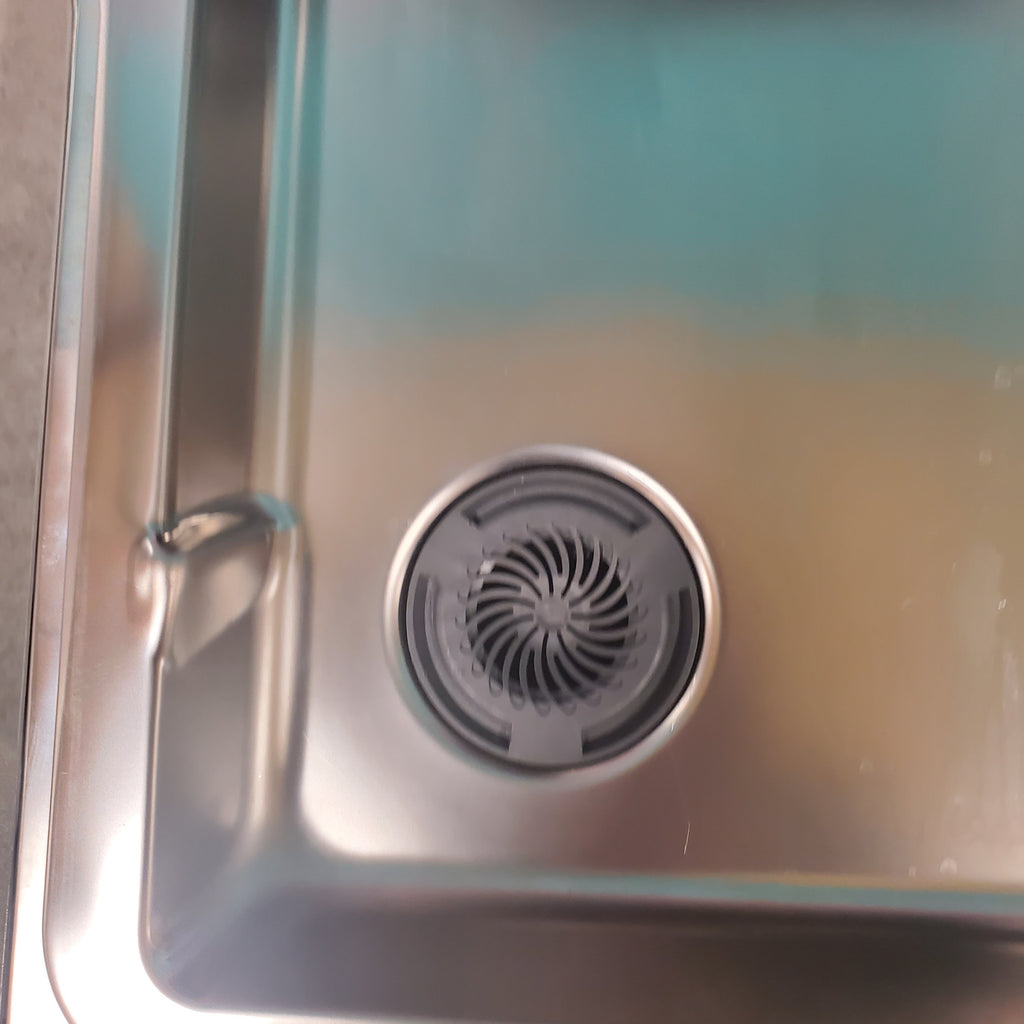

Hard Food Disposer with removable filter
Deep Clean Silverware Jets
90+ Spray Jet Wash System
Hidden Heater
Automatic HotStart
Bottle Jets (4)
Wash System
4-Level
800 Series
Water Filtration System
100% Filtration with Hard Food Disposer and Removable Filter
POWER / RATINGS
Calrod Heater Watts
1200/400
Electrical Requirements
120V ; 60Hz ; 10.2A
Energy Consumption (kWh/year)
240
Hertz
60
WEIGHTS & DIMENSIONS
Approximate Shipping Weight
137 lb
Cabinet Width
24 in
Cutout Depth (in)
24 in
Cutout Height (in)
33 1/2 in
Cutout Width (in)
24 in
Depth with Door Open
27 1/2 in
Height w/ Legs Retracted - Minimum Height
33.375 in
Height w/Legs Extended - Maximum Height
34.625 in
Net Weight
124 lb
Overall Depth
24 in
Overall Depth with Handle
27.40 in
Overall Height
34 in
Overall Width
23 3/4 in23
