ACCESSORIES

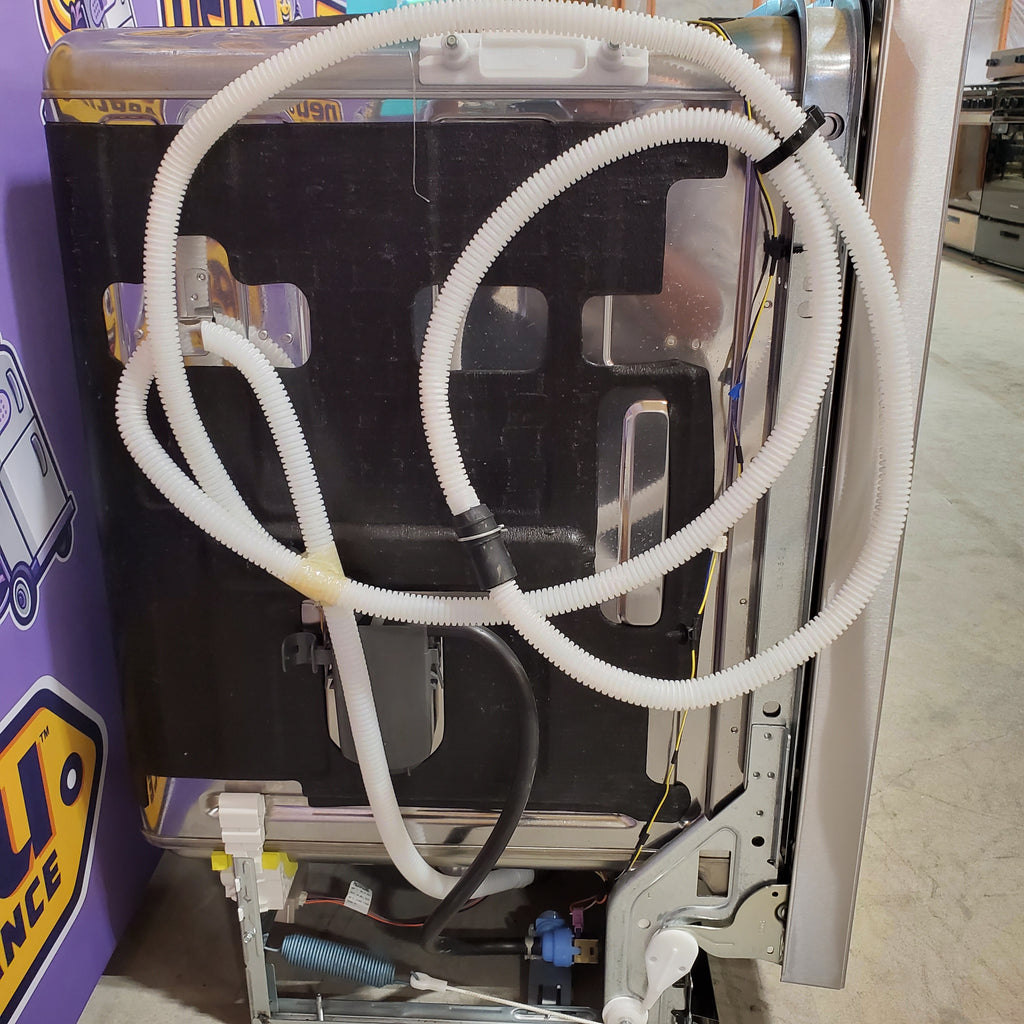

Optional 12' Drain Hose Optional hose kit (WD24X10065)
APPEARANCE
Color Appearance Fingerprint Resistant Stainless
Control Panel Color Matte Onyx Black treated with Microban™ Antimicrobial Technology
Door Appearance Full-length door
Door Style Long Door with Top Controls
Handle Color Fingerprint Resistant Stainless
Handle Design Recessed
Handle Pocket Handle, Treated with Microban™ Antimicrobial Technology
Installation Side Installation or Top Installation Included, Built-Up Floor Capable, Flush Cabinet Installation
ECONOMICAL / QUIET
Door Insulation Insulation, Mastic
Motor Type Variable Speed
Outer Wrap Full-wrap Blanket, Bitumen
Quiet Features Quiet Water Valve, Sealed Toe Kick Tub Collar Trim
Quiet Package 44 dBA
FEATURES
Additional Protection Active Flood Protect
Connected Capabilities Amazon Alexa, Google Home

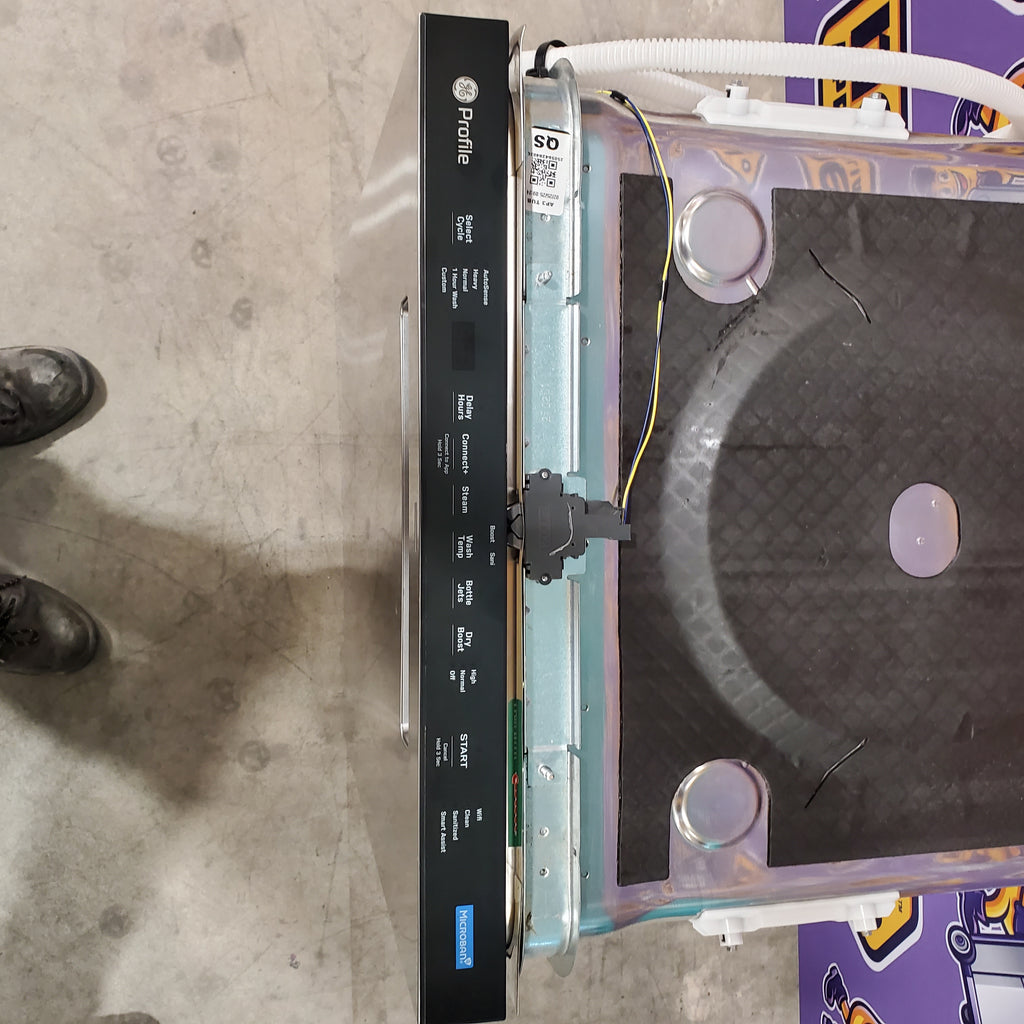

Control Type Top Controls, Fingerprint Resistant Cap Touch Controls, 8 Touchpads
Cutlery Tray One piece removable 3rd rack
Dishwasher Control Features 3 Digit Display Cycle Countdown with Notification Bar on door, Cycle Progress Indicators: Clean/Sanitized/Smart Assist/Wi-Fi/Remote Enabled, Last Cycle Memory, Audible End-of-Cycle Signal, White LEDs
Dishwasher Cycles AutoSense, Heavy Wash, Normal Wash, 1 Hour Wash, Cascade Platinum Plus (on app), Custom (assigned to Rinse - reassignable on app)
Dishwasher Drying Features Normal, High, Off, Dry Boost™, Multi-Wattage Wash & Dry Element
Dishwasher Options Delay Start 1-12 Hr., Child Lock (on app), Wash Zones/Half Load (on app), FilterFresh (on app), Sabbath Mode, Start/Cancel, Connect+ (assignable on app), Steam PreWash, Wash TempBoost, Sani (Certified to NSF Standard 184), Bottle Jets, Dry Boost™ (Off), Dry Boost™ (High), Dry Boost™ (Normal)

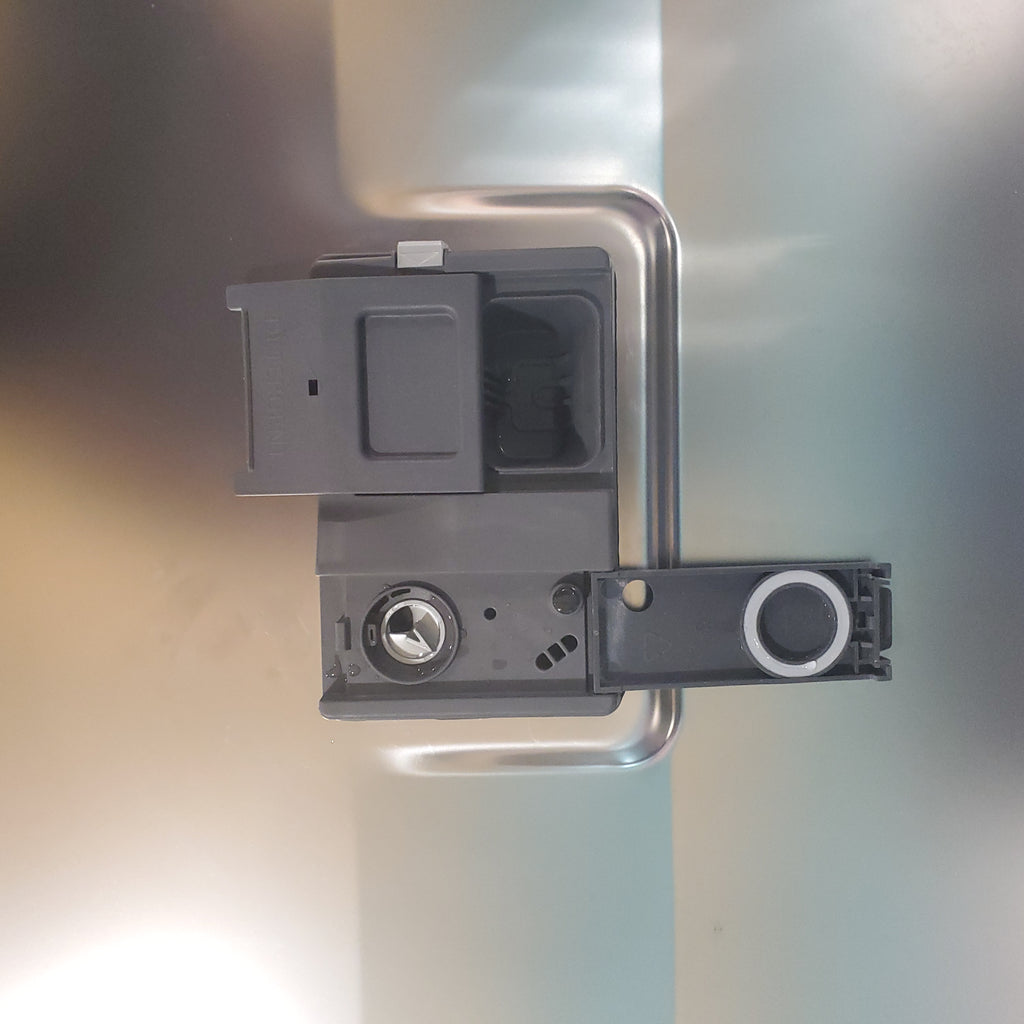

Dispenser Rinse Aid with Indicator and Adjustment
Exterior Style Traditional
Latch Pull with Handle
Leveling System 4 Leveling Legs

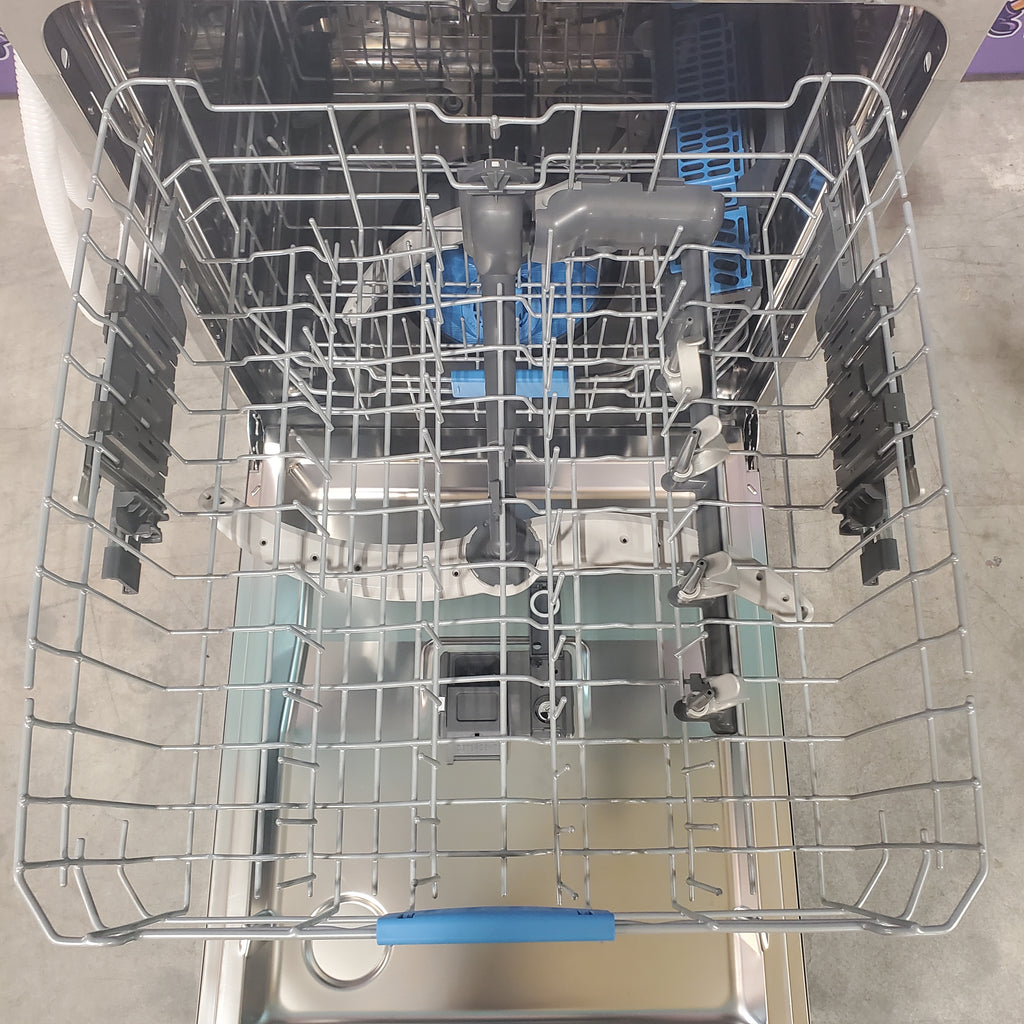

Lower Rack Ball-Tip Tines, 1 Blue rack handle treated with Microban™ Antimicrobial Technology
Microban™ Antimicrobial Treated Surfaces Yes - Exterior Handle, Control Panel, Interior Rack Handles, Silverware Basket Cell Covers, Fine & Ultra Fine Filters
Number of Cycles 6
Number of Options 14
Number of Place Settings 16
OdorBlock Capabilities Microban + FilterFresh
OU Certified No
Product Type Built-In
Rack Color Silver

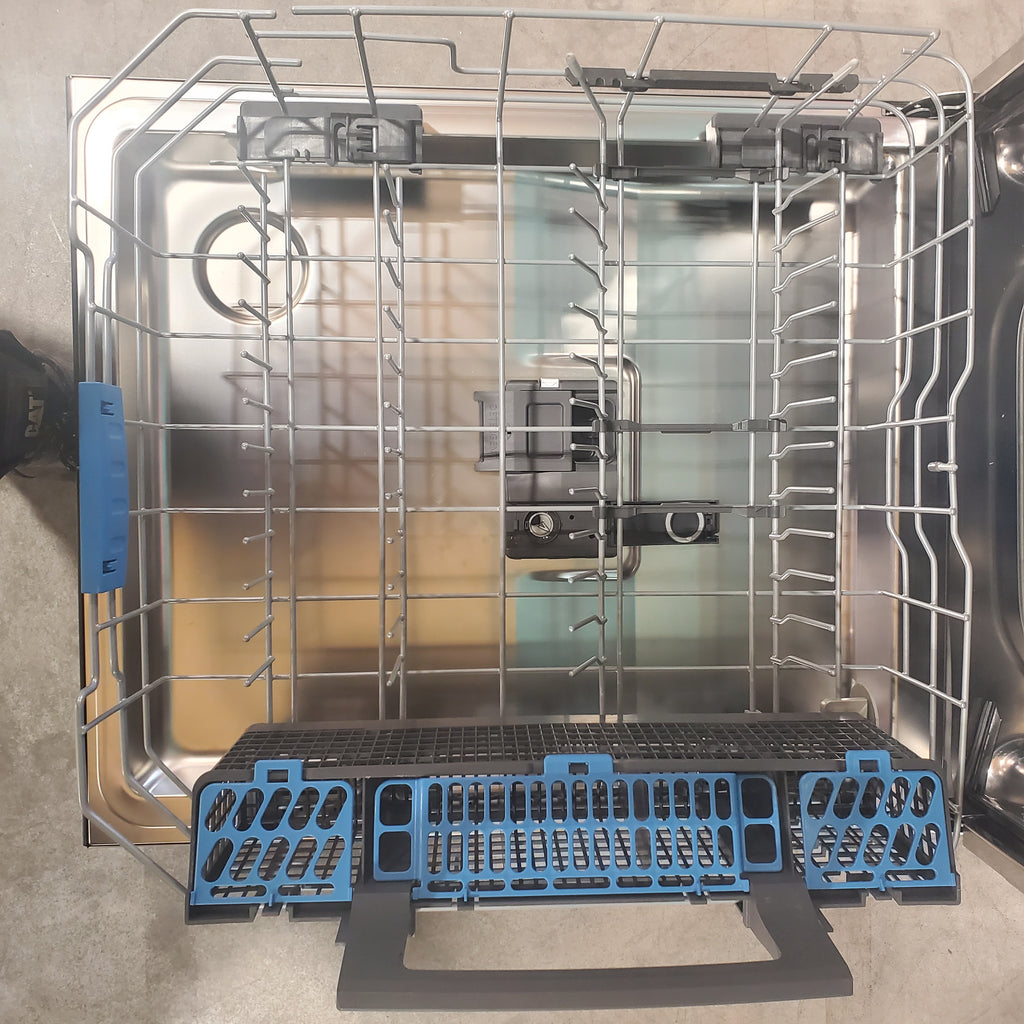

Rack Features Ball-Tipped Tines, Adjustable Upper Rack, Fold-Down Tines - Lower, 1 Piece Silverware Basket with 3 Cell Covers, Blue cell covers treated with Microban™ Antimicrobial Technology
Racking Material Nylon
Racking System Full 3rd rack
Sabbath Mode Optional
Sensor Clean Sensor
Showroom Power Mode Yes
Smart Assist Yes
Style Built-In Top Control

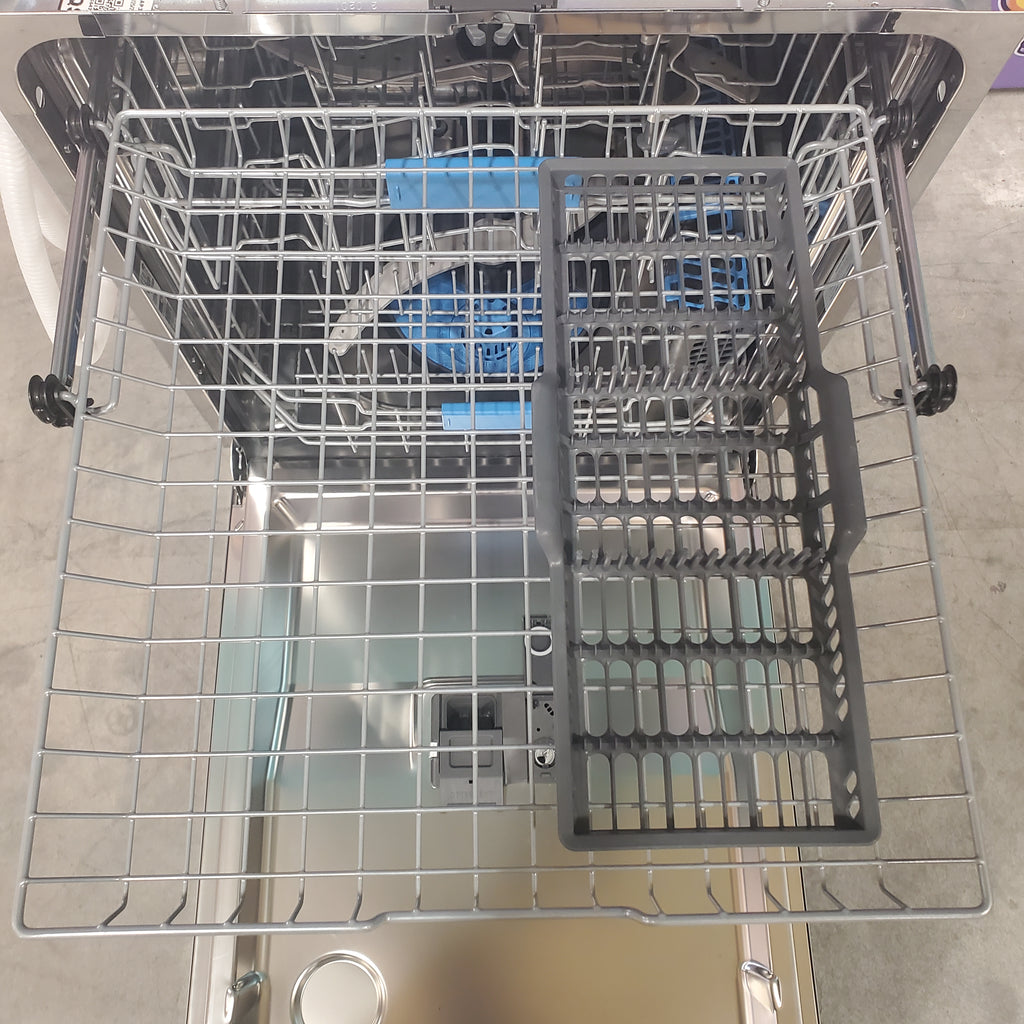

Top Rack/3rd Rack 3rd Rack + Caddy
Tub and Door Liner Stainless Steel
Tub Type Tall Tub
Upper Rack Ball-Tip Tines, 1 Blue rack handle treated with Microban™ Antimicrobial Technology, Smooth Glide Upper Rack

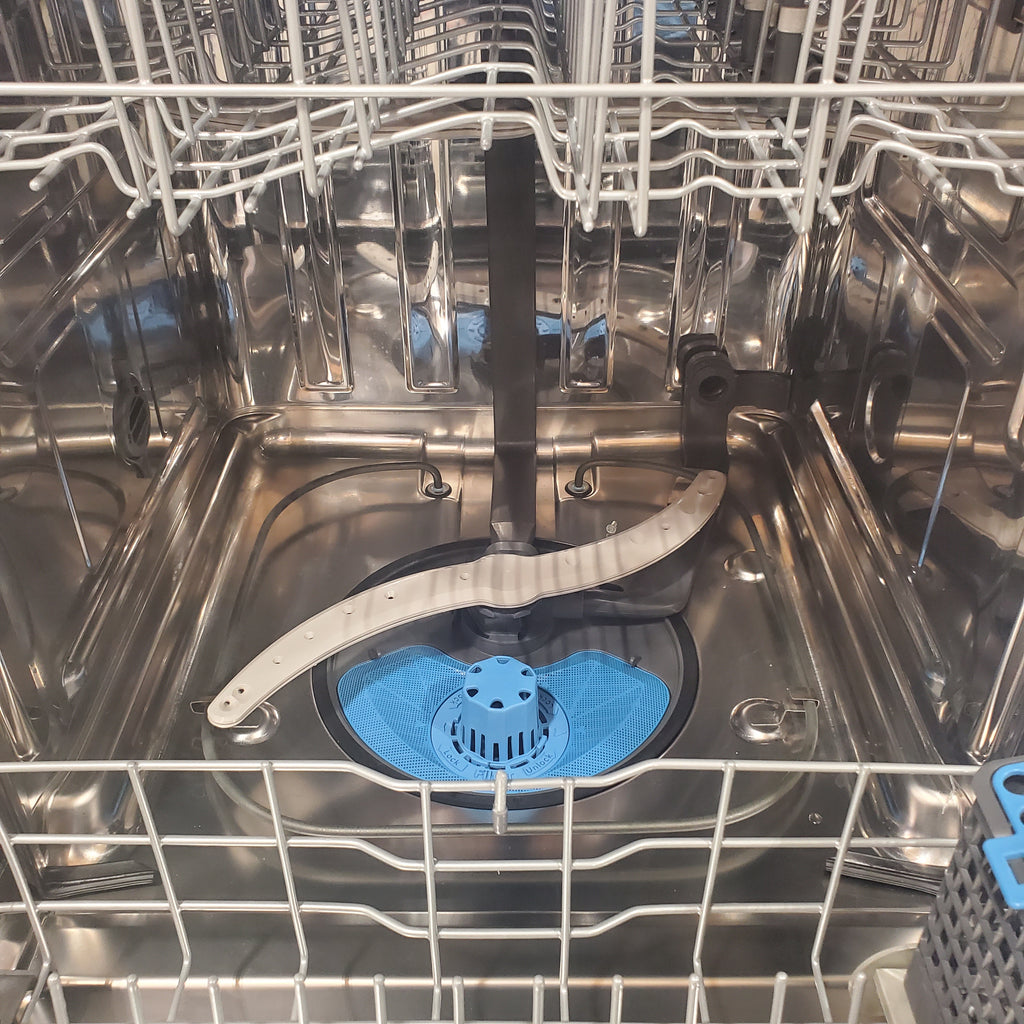

Wash Arms 3 Wash Levels, Lower, Middle, Upper, Bottle Jets, Deep Clean Silverware Jets
Wash System Features Variable Speed Dual Pumps and Motors, Automatic Temperature Control, Drain Pump, Piranha™ Hard Food Disposer with removable filter, 90+ Spray Jet Wash System, Deep Clean Silverware Jets, Automatic HotStart, Bottle Jets (4)
Wash System 700 Series, 3-Level
Water Filtration System 100% Filtration with Piranha Hard Food Disposer and Removable Filter, Blue filters treated with Microban™ Antimicrobial Technology
Wi-Fi Connect Built-In
POWER / RATINGS
Calrod Heater Watts 800/500
Electrical Requirements 120V ; 60Hz ; 6.6A
Energy Consumption (kWh/year) 240
Hertz 60
Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Volts/Hertz/Amps 120V; 60Hz; 6.6A
Watts 936
WEIGHTS & DIMENSIONS
Approximate Shipping Weight 118 lbx
Cabinet Width 24 in
Cutout Depth (in) 24 in
Cutout Height (in) 33 1/2 in
Cutout Width (in) 24 in
Depth with Door Open 27 1/2 in
Height w/ Legs Retracted - Minimum Heigh t33.375 in
Height w/Legs Extended - Maximum Height 34.625 in
Net Weight 105 lbs
Overall Depth 24 in
Overall Height 34 in
Overall Width 23 3/4 in
