Gas Range Model # WFG775H0HZ
Whirlpool Stainless Steel 30' 5.8 cu. ft. Freestanding Gas Range with Frozen Bake™ Technology
• EZ-2-Lift™ Hinged Cast-Iron Grates
• Frozen Bake™ technology
• Fan Convection Cooking
• Fingerprint Resistant
• SpeedHeat™ Burner
Skip preheating with Frozen Bake™ technology. This freestanding gas range with self-cleaning oven lets you cut out routine steps so you can get dinner items like pizza to the table quickly. Get quick access to spills, too, with EZ-2-Lift™ hinged cast-iron

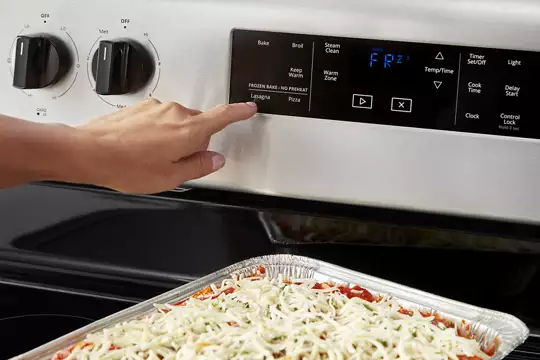

Frozen Bake™ technology
Skip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings.

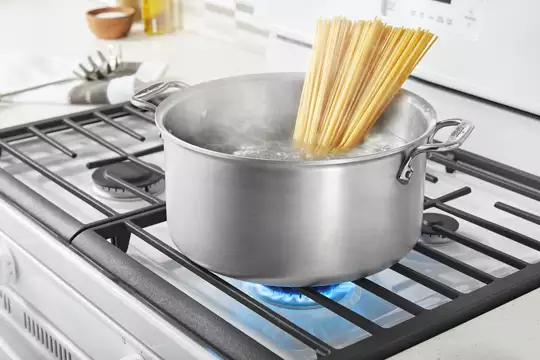

SpeedHeat™ Burner
Get dinner to the table fast with this burner that generates the high heat needed to sear and boil quickly.
EZ-2-Lift™ Hinged Cast-Iron Grates
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ hinged cast-iron grates. The hinged design lets you wipe up under them without removing them. For a more thorough clean, the grates are also dishwasher-safe.
Fan Convection Cooking
Cook meals consistently with a fan in the back of the oven that distributes hot air more efficiently. This helps eliminate cold spots so you can bake on any rack.
Fingerprint Resistant
Available in black stainless and stainless finishes that are easy to clean and resist fingerprints and smudges.
Center Oval Burner
Easily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the cooktop.
Keep Warm Setting
Keep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
AquaLift® Self-Cleaning Technology
Temperature Sensor
Get evenly-baked food with a sensor that monitors oven temperature and adjusts the cooking elements.
Griddle
Make pancakes, grill vegetables or sear steaks with the included griddle that lets you cook breakfast, lunch and dinner right on the cooktop.
5.8 cu. ft. Capacity
Cook even your largest meals with 5.8 cu. ft. capacity.
Large Oven Window
Keep an eye on your meal and track cooking progress through the Large Oven Window.
Dishwasher-safe knobs
Make cleanup easy by washing knobs right in the dishwasher.
Designed, engineered and assembled in the U.S.A.
Element/Burner Details
Center Rear Element-Burner Power
8,000 BTU
Center Rear Element-Burner Type
Oval Burner
Cooktop Element Style
Gas Burner
Left Front Element-Burner Power
18,000 BTU
Left Front Element-Burner Type
High Output
Left Rear Element-Burner Power
9,500 BTU
Left Rear Element-Burner Type
Burner
Number of Cooking Element-Burners
5
Right Front Element-Burner Power
15,000 BTU
Right Front Element-Burner Type
Burner
Right Rear Element-Burner Power
5,000 BTU
Right Rear Element-Burner Type
Simmer
Details
LP Convertible
Yes - Kit Included
Natural Gas Convertible
Yes
Oven Automatic Shut-Off
Yes
Oven Configuration
Single Oven
Oven Selections
Audible Signal, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Frozen Bake, Keep Warm Setting, Language Conversion, Sabbath Mode, Start Time, Stop Time, Timer
Power On Indicator Light
No
Power Outage Compatible
Yes
Range Configuration
Freestanding
Grate Details
Grate Details
Dishwasher Safe, Hinged, Matte Finish, Porcelain Coated Cast Grates, Recessed
Controls
Electronic Display Type
LED
Electrical
Power Cord Included
Yes
Handle Color
Stainless Steel
Handle Material
Stainless Steel
Handle Type
Reach Through Handle
Oven Control Location
Backguard
Oven Control Type
Electronic Touch
Oven Window Size
Extra Large
Cooktop Details
Cooktop Control Knob Color
Stainless Steel
Cooktop Control Knob Type
Weighted
Cooktop Control Location
Front
Cooktop Control Type
Knobs
Cooktop Surface Color
Black
Cooktop Surface Material
Porcelain Coated Steel
Griddle Included
Included
Heating Element On Indicator Light
No
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Oven Cavity Details
Automatic Convection Conversion Temperature Adjust
No
Bake Element Power
18,000 BTU
Broiler Element Power
11,000 BTU
Broiler Location
Top of Oven
Convection Element Type
Fan
Convection Functions
Bake
Natural Gas Convertible
Yes
Oven Cleaning Type
AquaLift® Self Clean
Oven Cooking System
Convection
Oven Light Switch Location
Oven Control
Oven Light Type
Incandescent
Oven Rack Type
2 Standard and 1 Max Capacity
Dimensions
Depth Closed Excluding Handles
25-313/1000 in
Depth Closed Including Handles
27-3/8 in
Depth With Door Open 90 Degree
48 in
Oven Interior Depth
20-3/4 in
Oven Interior Height
20 in
Oven Interior Width
24-3/8 in
